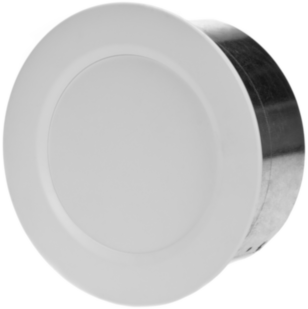

Cleaning capsule, round, 14.5cm, surface-mounted, 3 colors

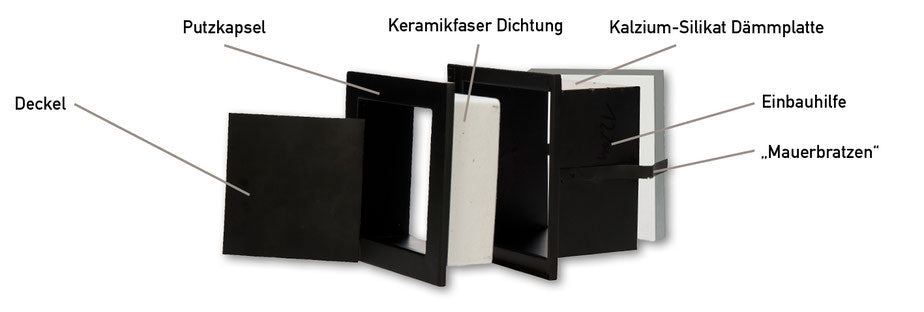

The cleaning capsule is fitted with a ceramic fibre seal and an internal insulation panel. This ensures a high level of tightness and good insulation. The calcium silicate insulation panel protects the surface of the cleaning cover from excessive temperatures. The integrated "wall anchors" allow for easy installation and an optimal connection with the stove casing.

Diameter: 145 mm

Installation type: surface-mounted

One becomes three – 9 different designs

The scope of delivery for all cleaning capsules (with the exception of the "for plastering in" variant) includes cleaning capsule covers in white, black, and stainless steel. This allows you to set targeted accents on the stove by using a differently coloured cleaning capsule cover.

The following variants are available for this type of cleaning capsule:

• round 14.5 cm (surface-mounted)
• round 14 cm (for plastering in)
• square 14x14 cm with cut-out (surface-mounted)
• square 14x14 cm with cut-out (flush-mounted)
• square 14x14 cm (for plastering in)
• square 14x14 cm without cut-out (surface-mounted)
• square 14.5x14.5 cm (flush-mounted) --> for plastering in or gluing in an insert
• square 17x17 cm (flush-mounted) --> for plastering in or gluing in an insert
• square 20x20 cm (flush-mounted) --> for plastering in or gluing in an insert

Definitions:

• Surface-mounted: The cleaning capsule is applied on top of the plaster surface. It sits raised above the plaster surface.
• Flush-mounted: Plaster can be applied flush against the cleaning capsule. The cleaning capsule and the plaster surface are level.
• Plastering in: The plaster can be applied directly to the cleaning tile. Visually, only a small gap remains.
