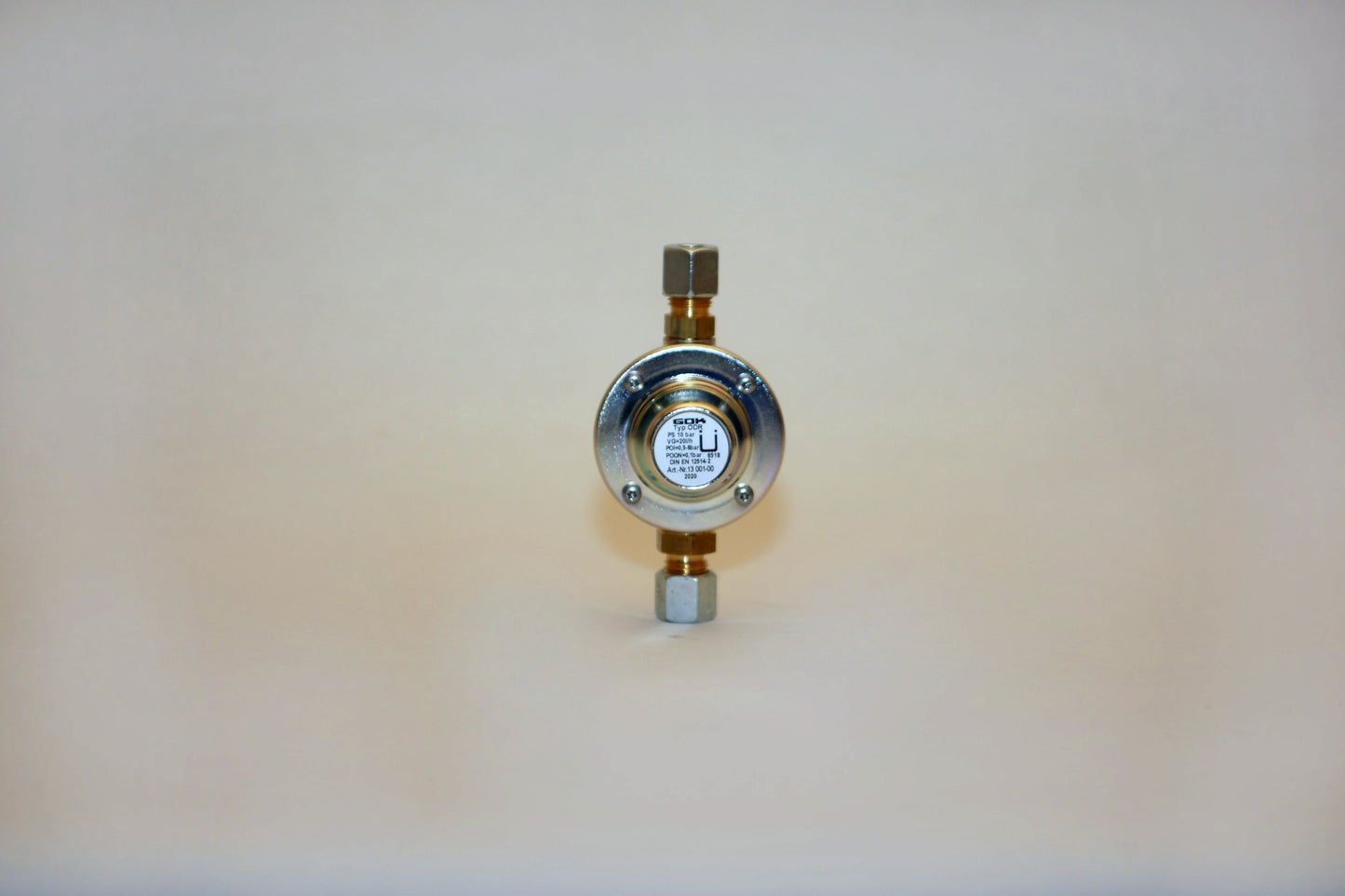

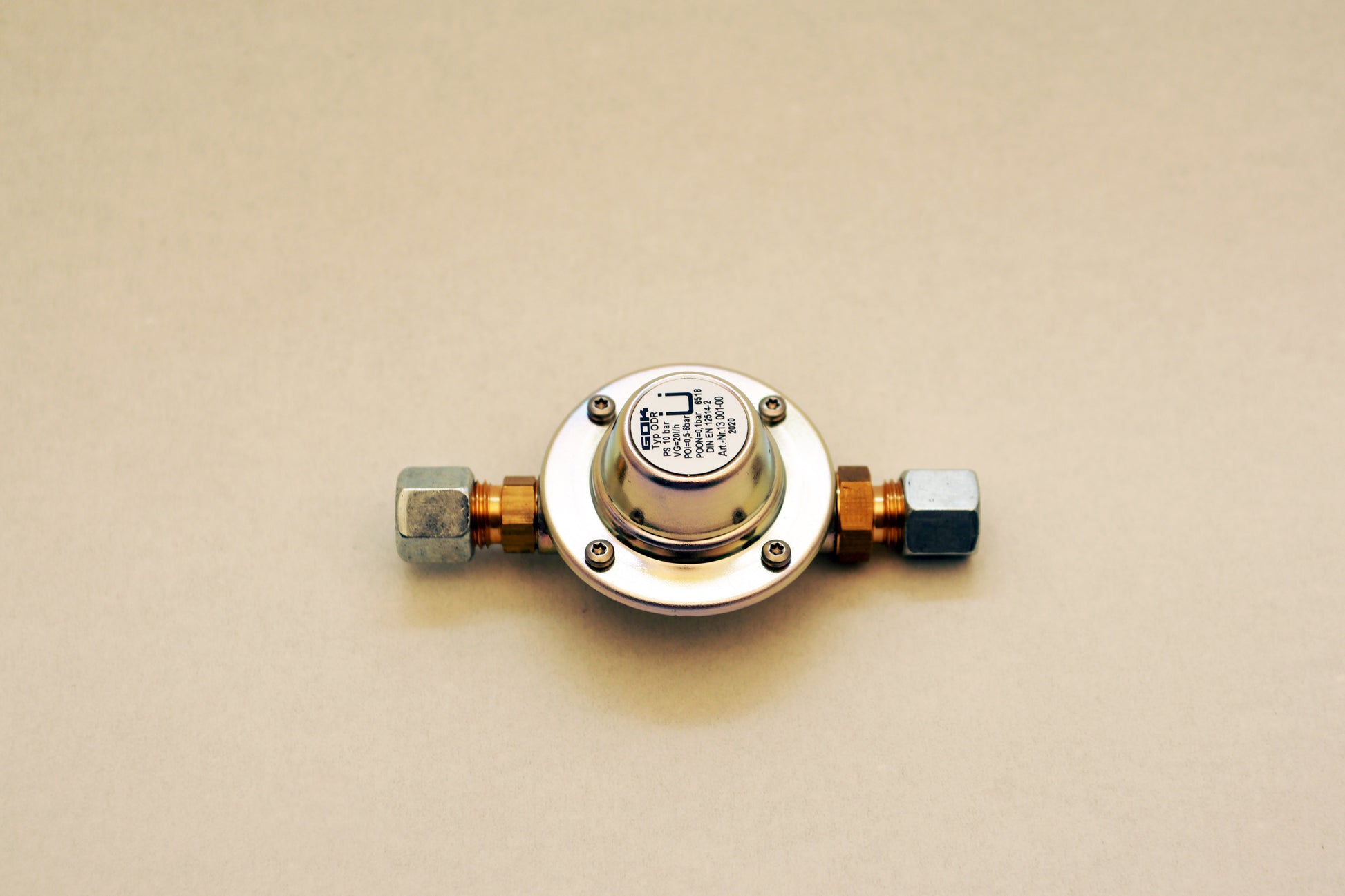

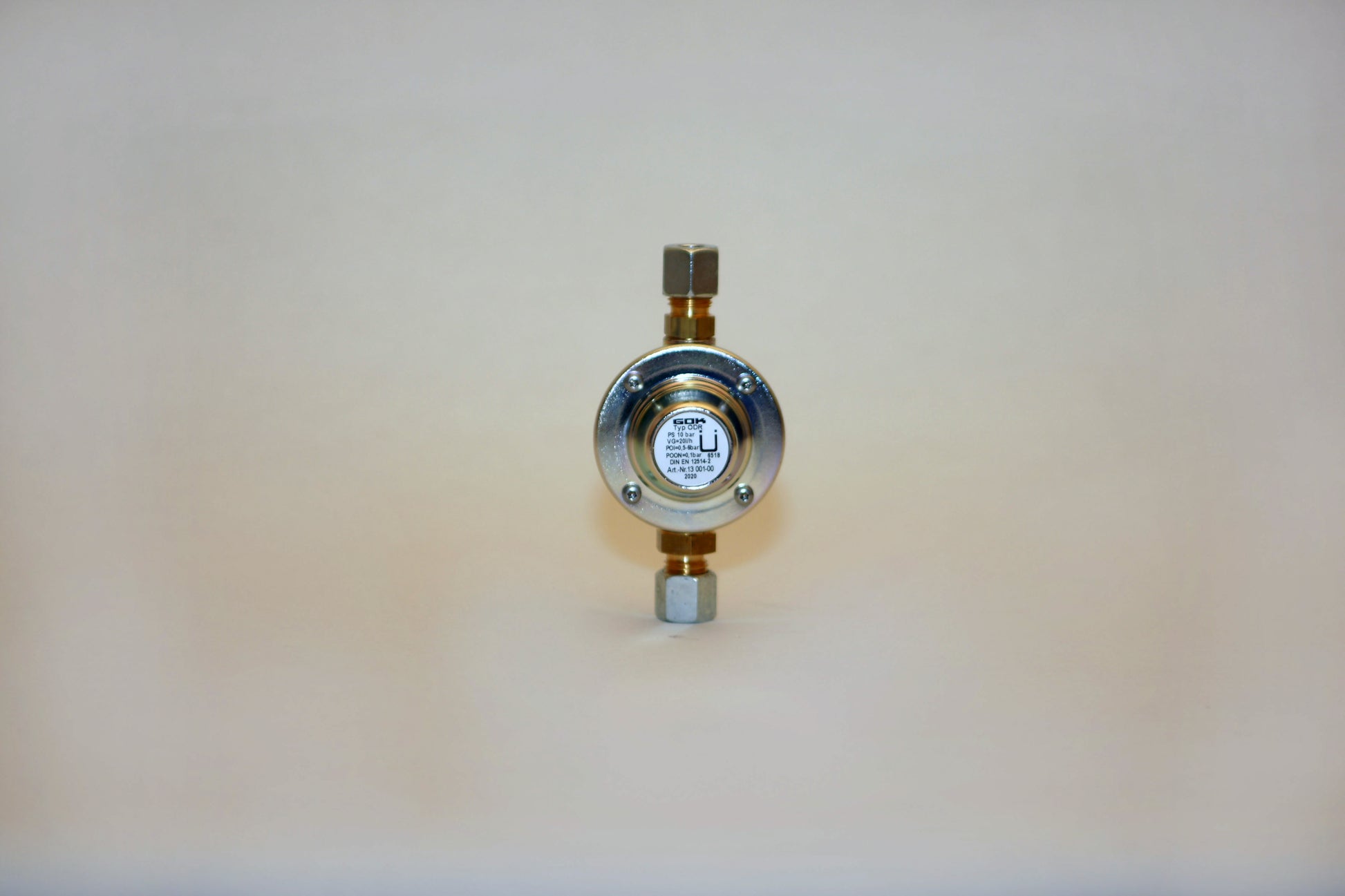

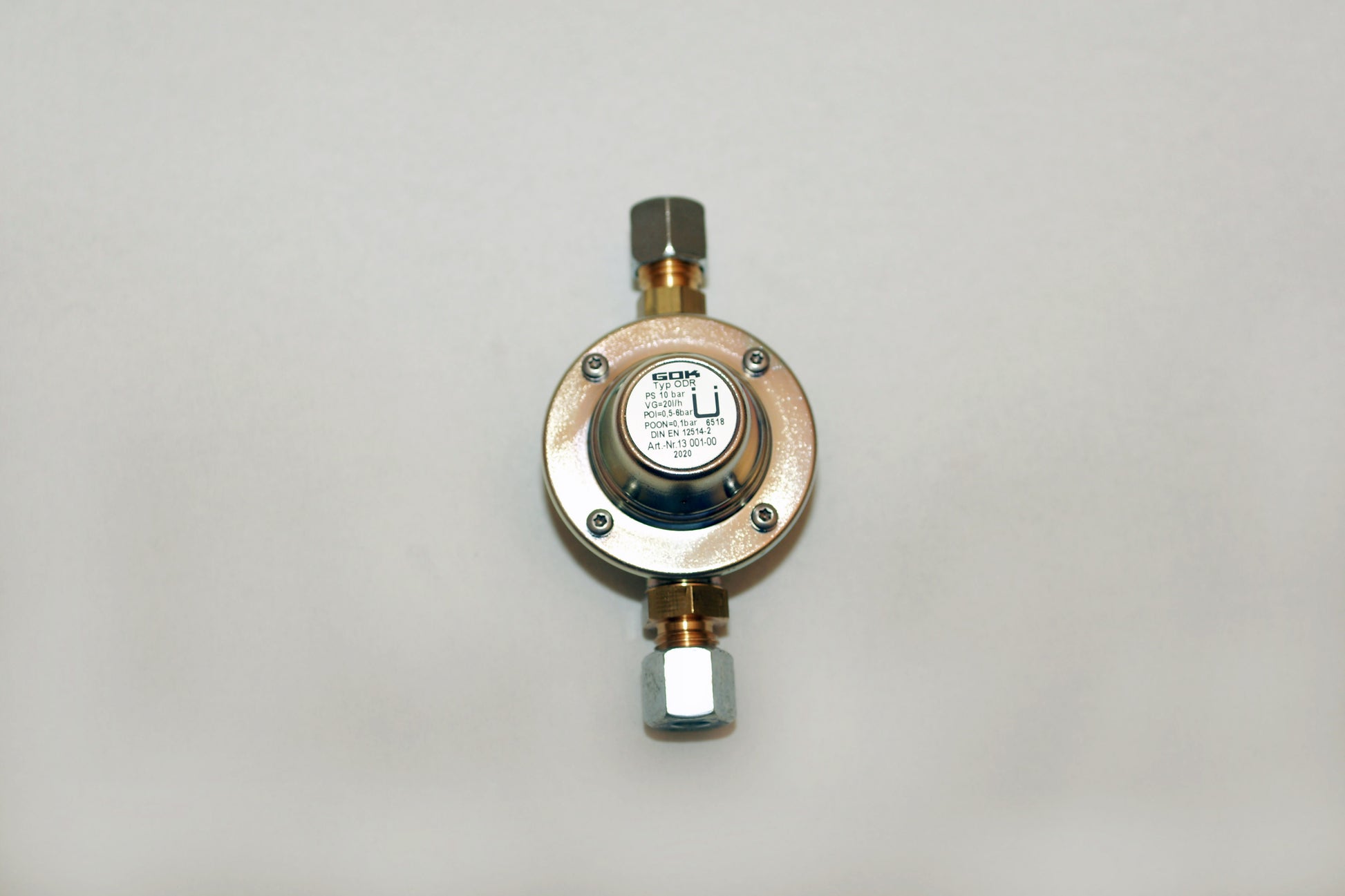

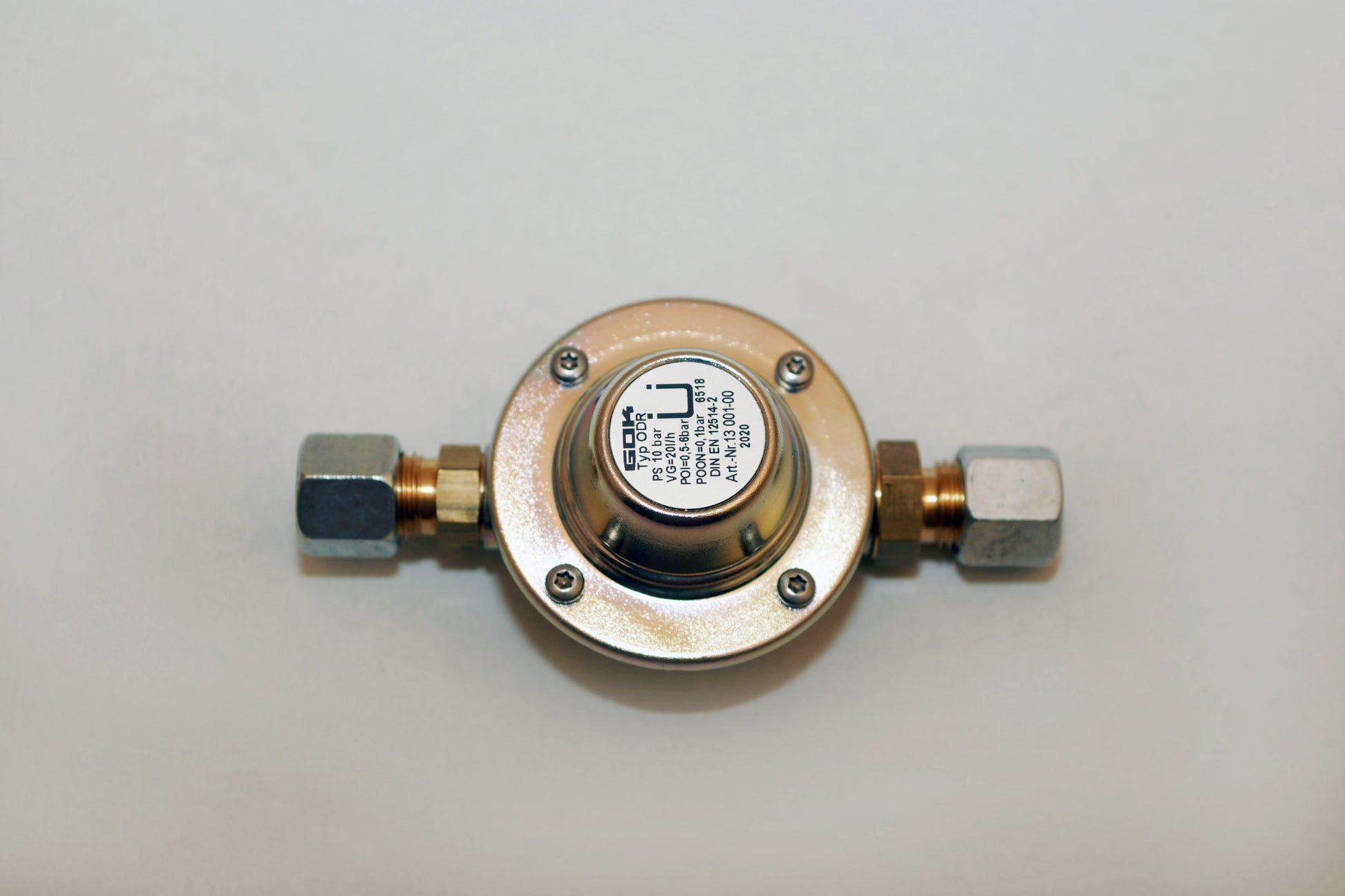

Oil pressure regulator for pressure regulation of oil stoves

The oil pressure regulator provides constant pressure regulation / pressure reduction for all downstream oil stoves or oil heating inserts. The oil pressure regulator is also referred to as a pressure reducer.

It keeps the outlet pressure constant at 0.1 bar or 100 mbar, regardless of fluctuations in inlet pressure or changes in flow rate. This ensures even and clean combustion.

The oil pressure regulator / pressure reducer is supplied including 2 union nuts and 2 cutting rings, and can therefore be installed immediately into the 8 mm oil line.

Technical data at a glance:

• Outlet pressure: constant at 100 mbar or 0.1 bar
• Inlet pressure: should be within the range of 0.5 bar to 6 bar
• Maximum permissible pressure: 10 bar
• Nominal flow rate: up to 20 l/h
• Connection: 8 mm cutting ring fitting (included)
• Tested according to DIN EN 12514-2
• Suitable for 8 mm pipelines with heating oil

After installing the oil pressure regulator, please check the tightness of the entire oil-fired heating system.
