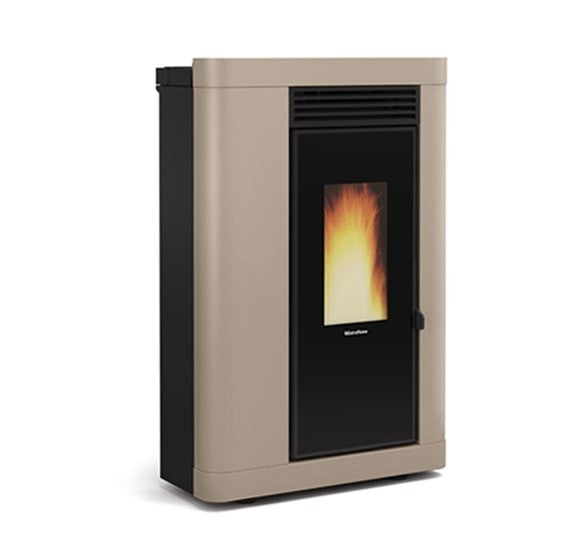

Pellet stove Extraflame Annabella AD Evo 3.4-9.0kW

The Extraflame Annabella pellet stove, with its painted steel cladding, impresses with its clever, flat design. Available in sleek white, attractive burgundy, or understated black, it fits into any home.

The large glass pane provides a fantastic view of the fire. The Annabella pellet stove is ingeniously designed so that the glass pane hardly produces any smolder (Glass Clean Control).

It is quite clever to be able to heat a second room using a warm air duct (pipe).

Perfectly coordinated air supply and patented smoke extraction create highly efficient combustion

The primary and secondary air are perfectly balanced for thorough combustion and an efficiency of over 90%. The Annabella pellet stove features an integrated electronic control unit (Electronic Air Control) that ensures efficient operation. No manual adjustments are required.

The remarkable, patented smoke extraction system ensures optimal chimney draught.

Automatic control depending on the set room temperature

The integrated warm air fan ensures extremely rapid room heating. The temperature is fully automatic (room temperature control).

Once the desired room temperature is reached, the Annabella pellet stove switches to an economical power level.

The system detects a power failure and intelligently restarts the pellet stove (auto-restart).

Cast iron ensures safety and durability

The extendable firebox and combustion chamber doors are made of magnificent cast iron. Cast iron is traditionally the first choice in stove construction.

Thanks to its compressive strength, cast iron in the Annabella pellet stove is wear-resistant and extremely durable. It's ideal for the firebox, stove door, and built-in components.

Low fuel consumption due to optimal coordination of all components

Your Annabella pellet stove consumes only 0.6 kg to 1.8 kg of wood pellets per hour. Use the Annabella pellet stove as an efficient primary heating system or as a precise supplementary heating system.

Quick and easy cleaning

Thanks to the ash pan, cleaning the Annabella pellet stove is easy.

Advantages at a glance:

• Dimensions (W x D x H): 703 x 343 x 1078 mm
• Heat output: 3.4 - 9.0 kW
• Type: Air-guided
• BImSchV Stage 2 fulfilled
• Efficiency: >90%
• Hourly consumption: 0.8 - 2.0 kg/h
• Tank capacity: approx. 14 kg
• Weight: 132 kg
• Remote control: Yes
• Exhaust pipe diameter: 80 mm
• Number of possible channels: 1
• Connection options for flue pipe: top, rear, right side
• Connection options for sewer pipe: top, rear, right side
• Diameter of supply air pipe: 50 mm
• Diameter of sewer pipe: 80 mm
• Connection: 230 V
• Maximum heating volume: 230 m3
• Removable brazier: Yes
• Removable ash box: Yes
• Maximum length of ductwork: 6 m
• Ducting through additional thermostat: Yes
• Deactivation of ducting possible: Yes, can be switched off - heat emission either into the room or into the duct
• Manual cleaning of heat exchanger possible: Yes

Integrated high-quality technologies at a glance:

• Auto Re-Start (ARS) - Automatic restart after power failure
• Clean Glass Control (CGC) - Windscreen rinsing - soot deposits are avoided
• Electronic Air Control (EAC) - Electronically coordinated control of primary and secondary air ensures efficiency
• Resistant Door at time (RDT) - Wear-resistant, stable cast iron door
• Room Temperature Control (RTC) - Monitoring of the room temperature ensures optimal comfort operation
• Hard Reset Program (HRP) - Possibility of resetting to factory settings
• Pellet Level Control (PLC) - Economical - Monitoring the amount of pellets
• Auto Clean Checkup (ACC) - Automatic cleaning of the burner after the set operating hours have been reached
• Delay Stop System (DSS) - Possibility of delayed shutdown of the pellet stove
• Chrono Thermostat Program (CTP) - Weekly programming with settings for 4 time periods per weekday
• Keylock System (KLS) - Setting a key lock (child lock) on the display to prevent unauthorized operation
• Interface Control Temperature (ICT) - Oven control depending on external thermostat possible
• Rate Adjustment Program (RAP) - Adjusting the direction of the airflow

Impressive installation by trained specialists

Take advantage of this opportunity and have your pellet stove installed by a trained specialist. This not only gives you peace of mind, but also ensures you receive the full manufacturer's warranty.
