Silicone sealing ring 80mm Viton seal for pellet stove pipe

This Viton seal serves as a replacement seal for the pellet stove pipe with Viton seal.

Depending on the pipe type, there are two different seals:

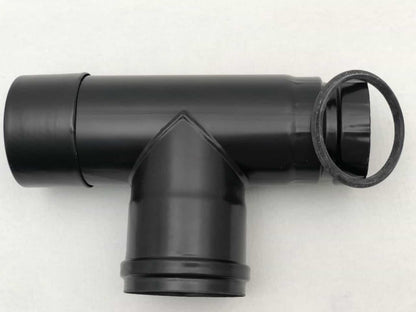

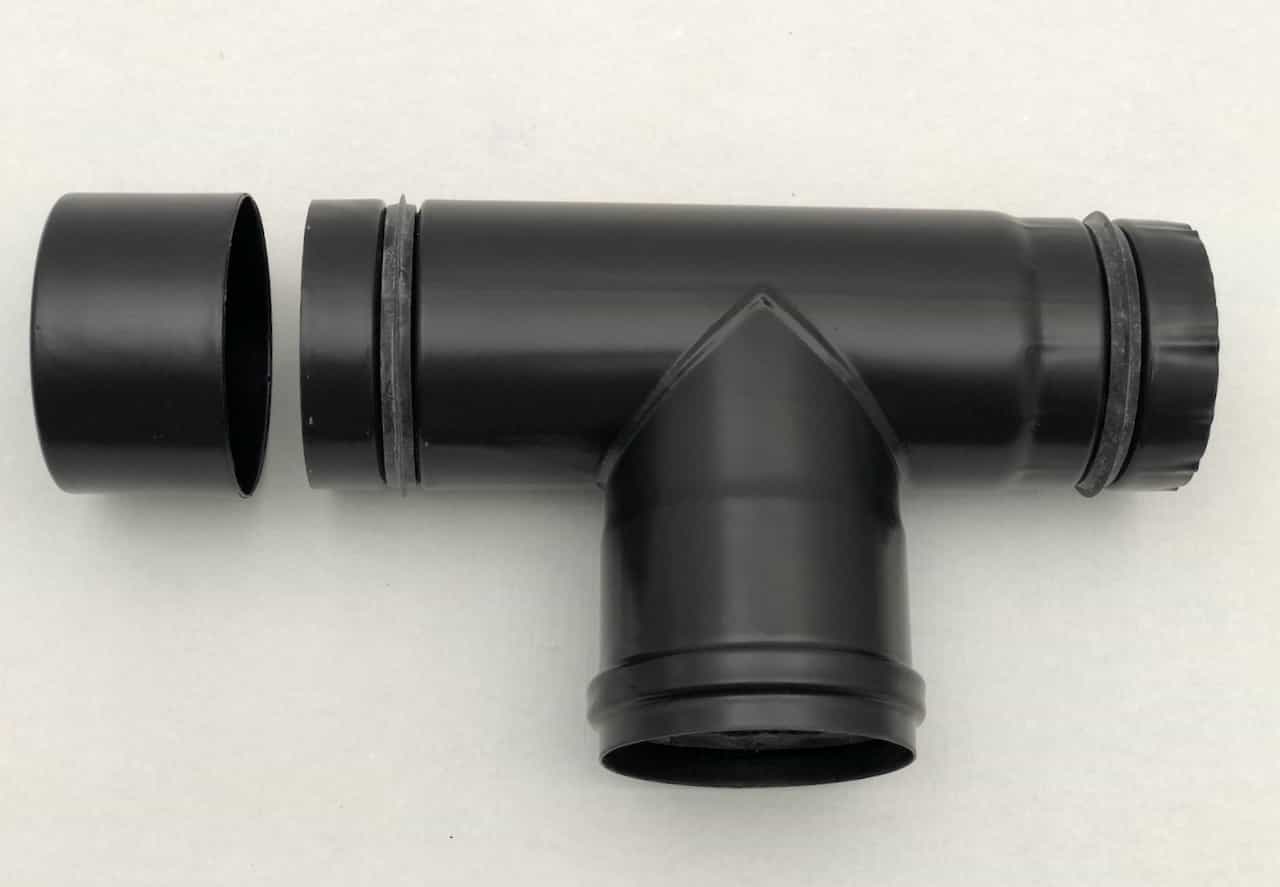

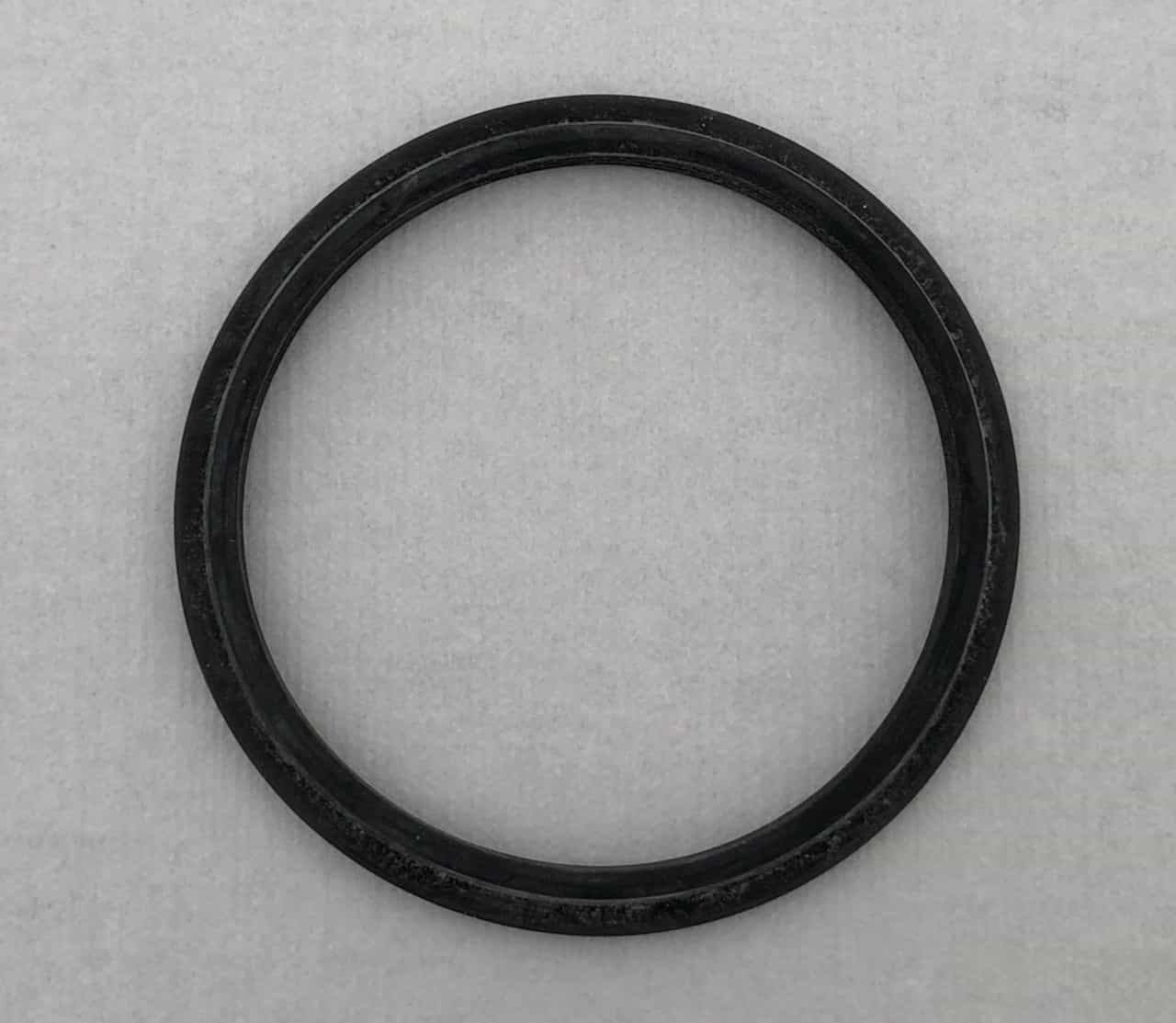

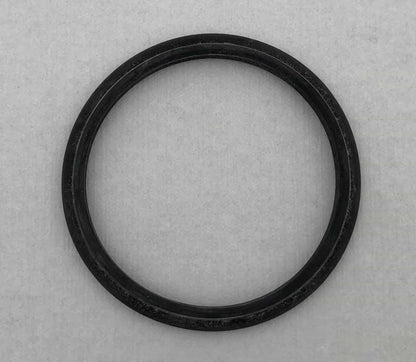

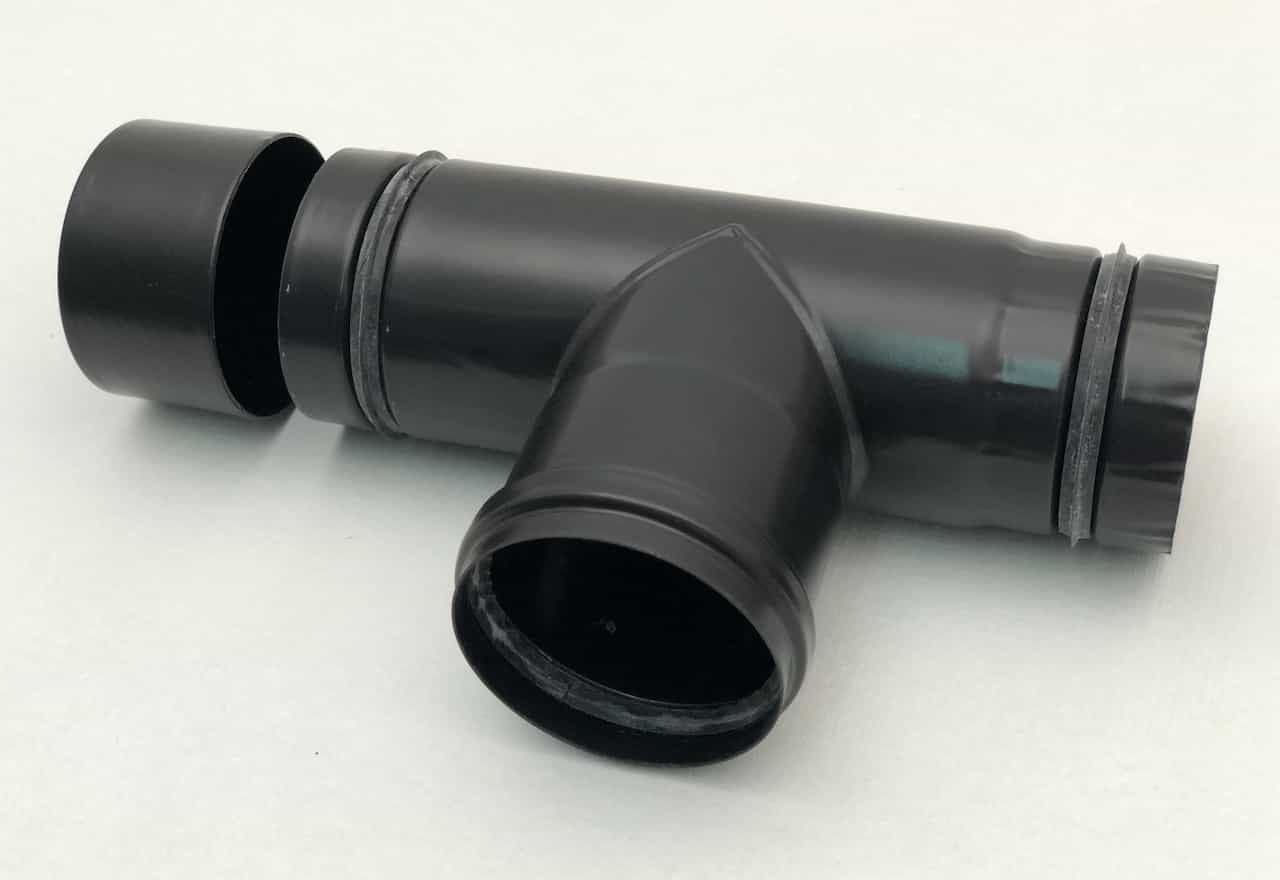

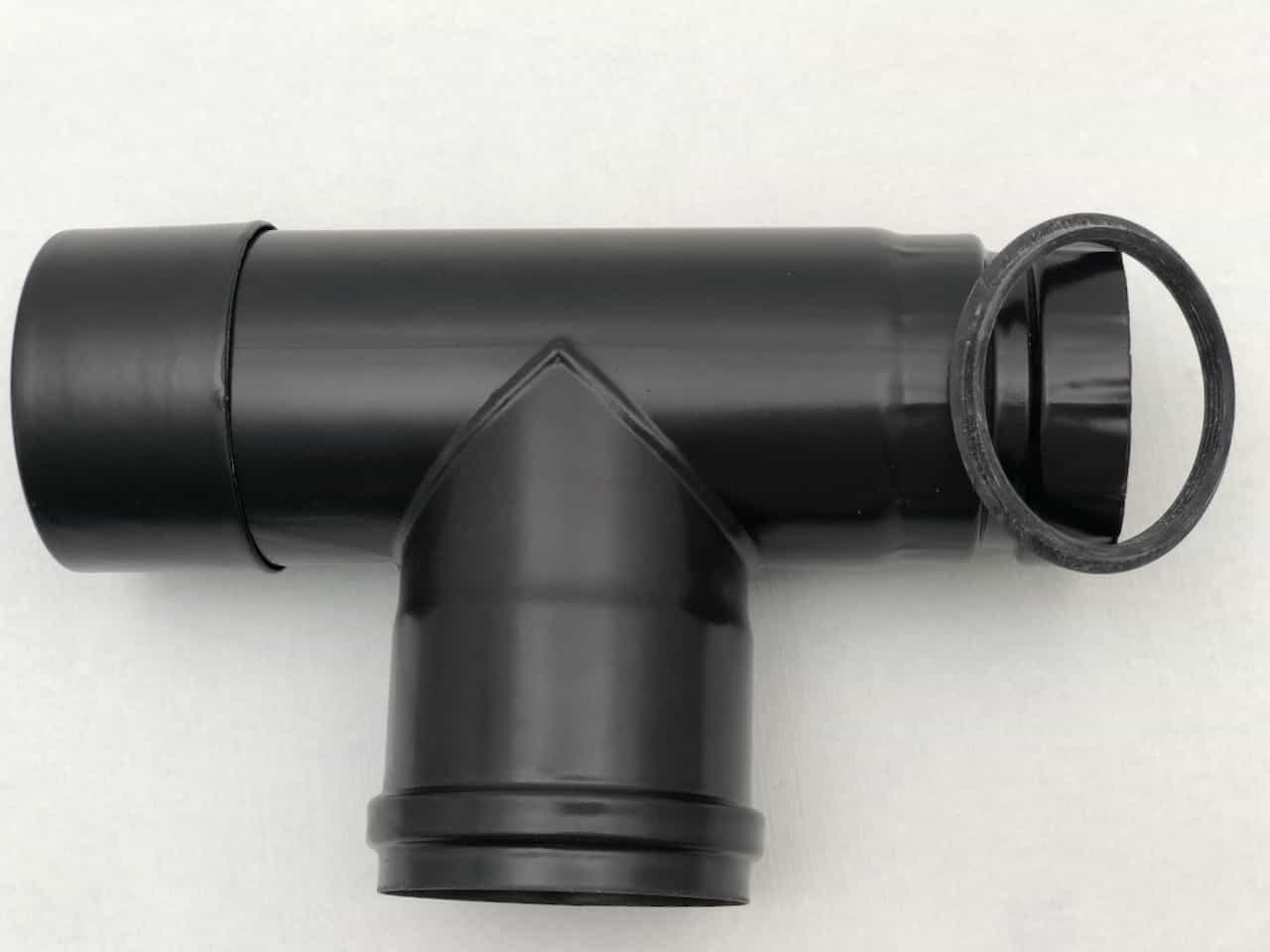

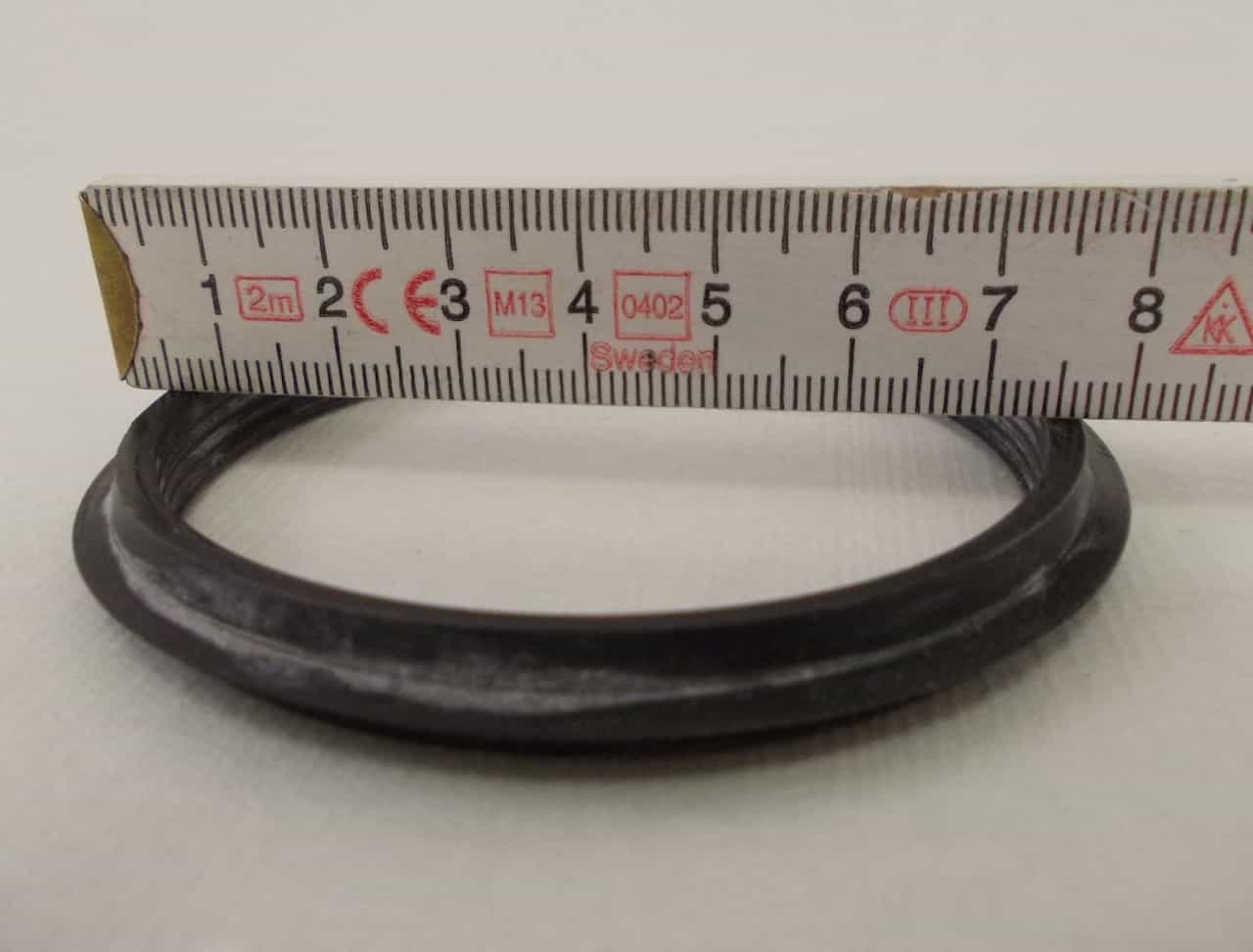

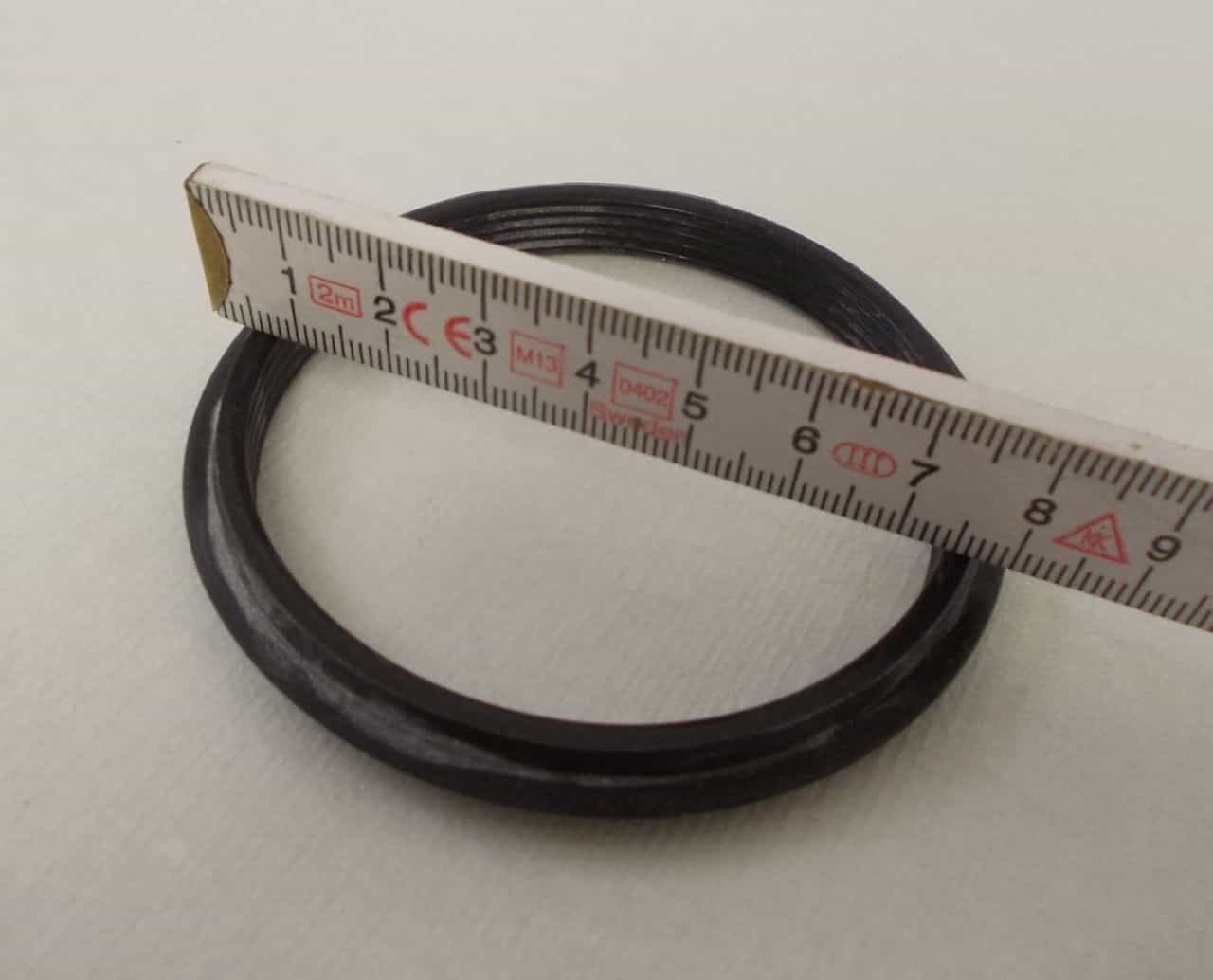

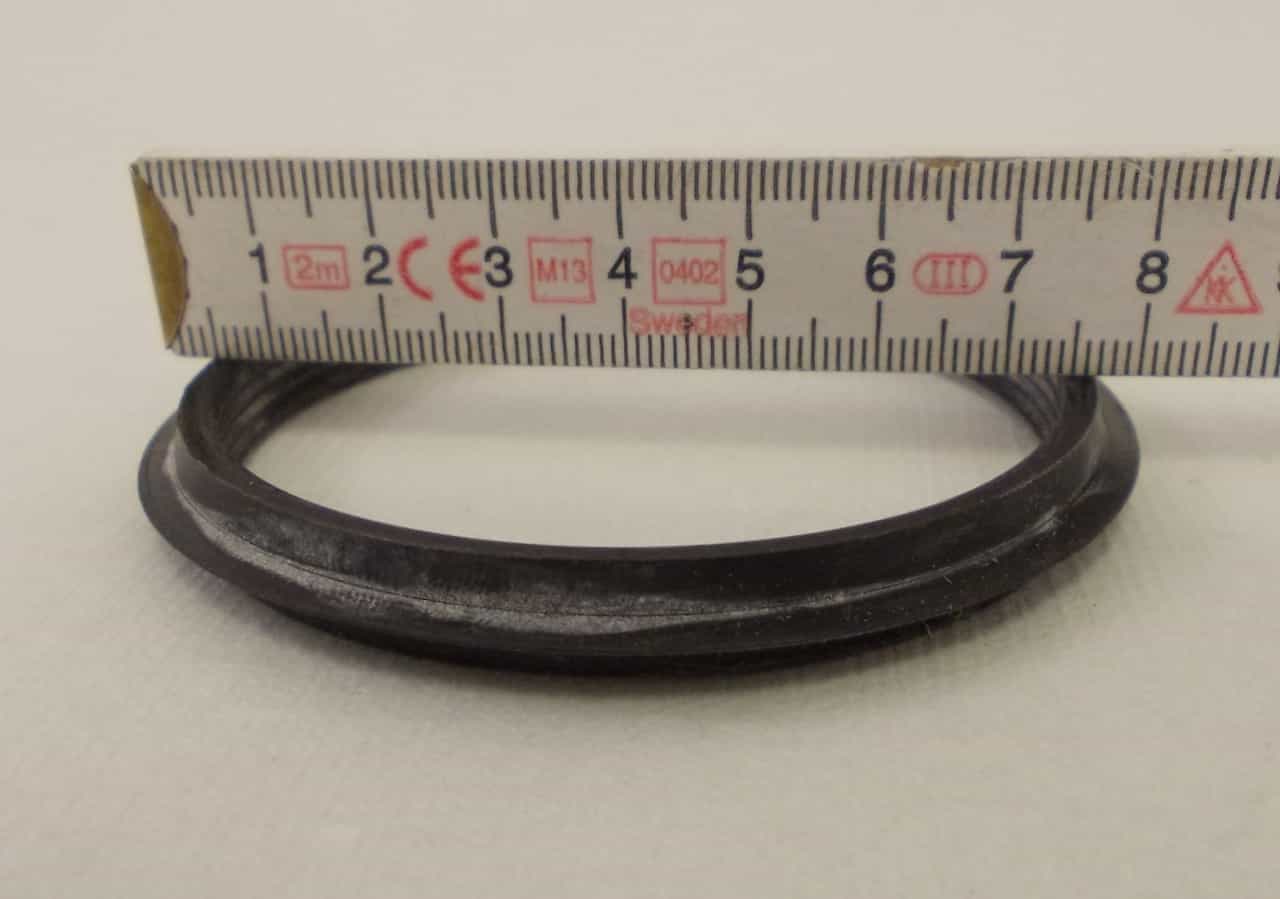

• Viton seal for the retracted (narrow) side of the 80 mm pipe (e.g. on the normal exhaust pipe, also below the cleaning cover)
• Outer diameter: approx. 80 mm
• Inner diameter: approx. 67 mm
• Height: approx. 8 mm

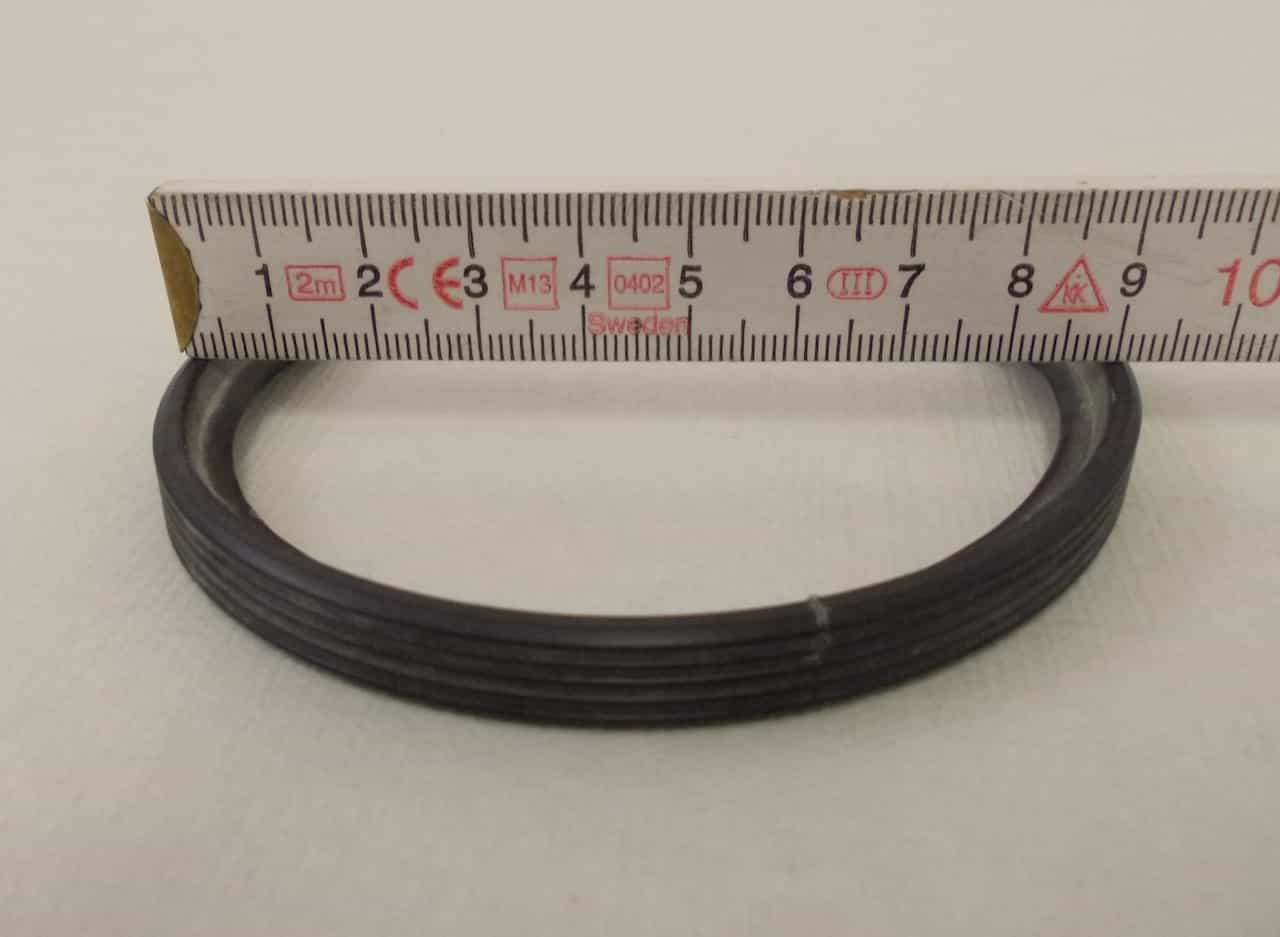

• Viton seal for the wide side of the 80 mm pipe (e.g. when connecting the capsular knee)
• Outer diameter: approx. 90 mm
• Inner diameter: approx. 80 mm
• Height: approx. 8 mm
• Temperature resistant up to approx. 230 °C

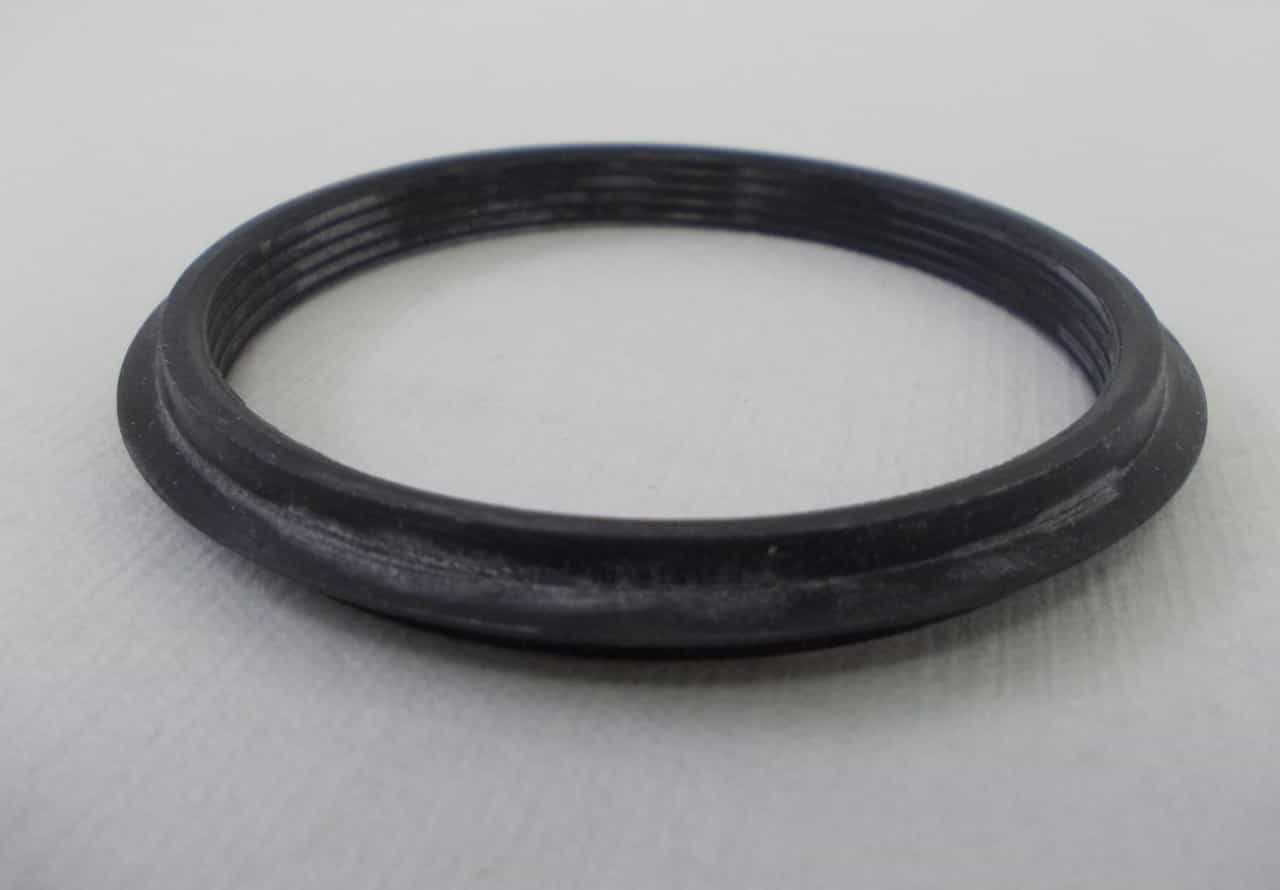

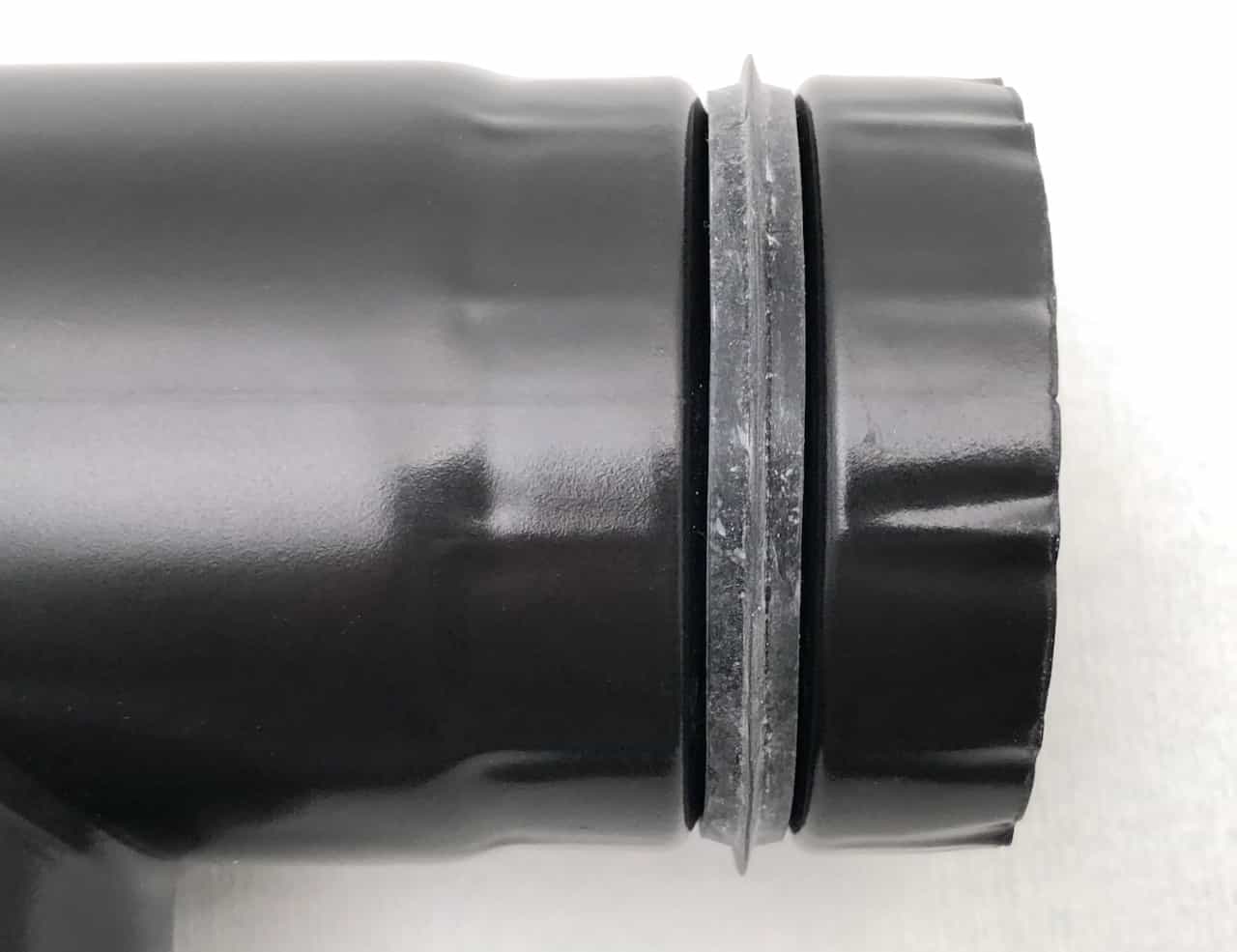

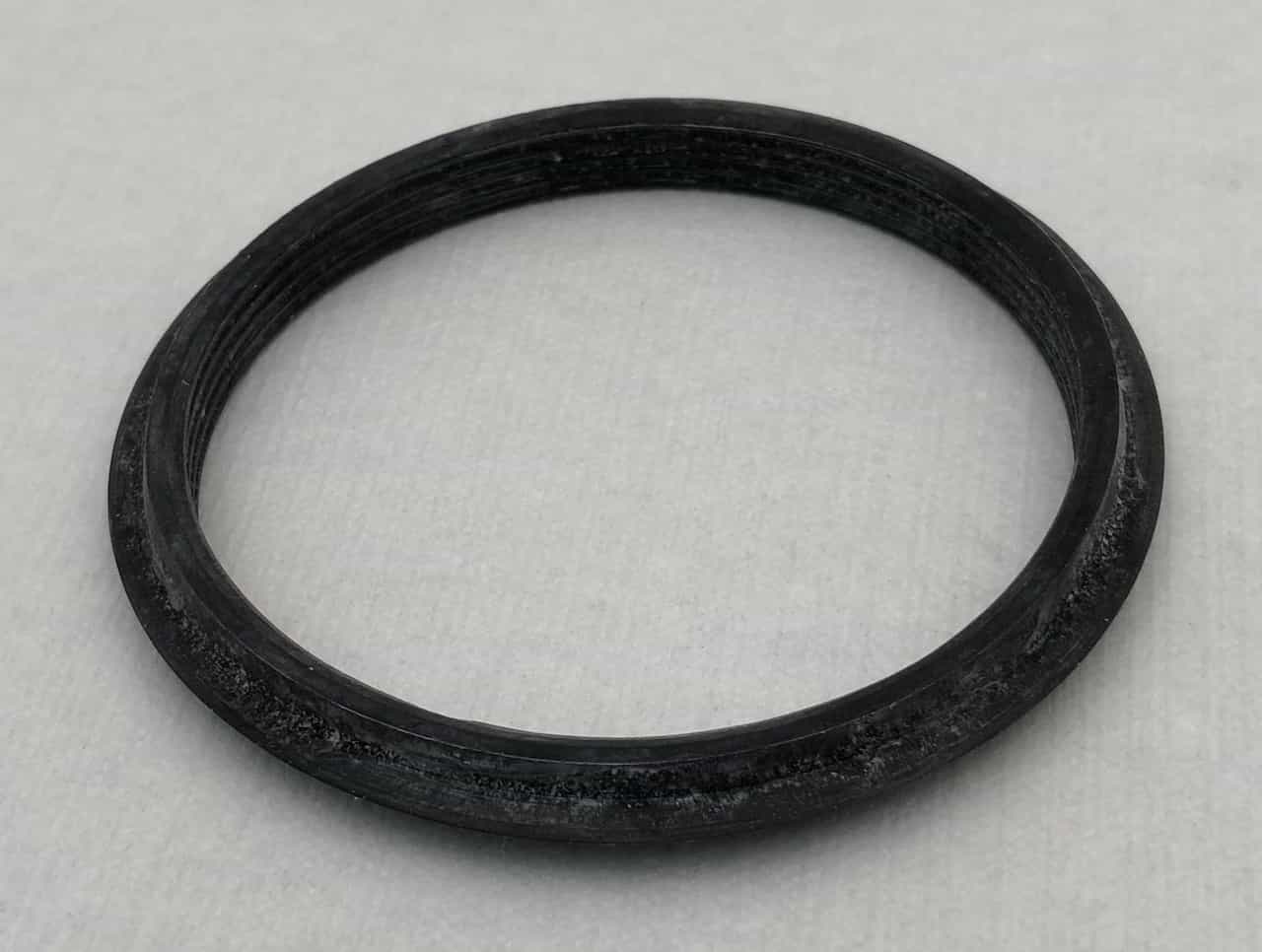

Please pay attention to the correct position of the T-profile.

Please select the seal that is worn out and needs to be replaced in the selection box.
