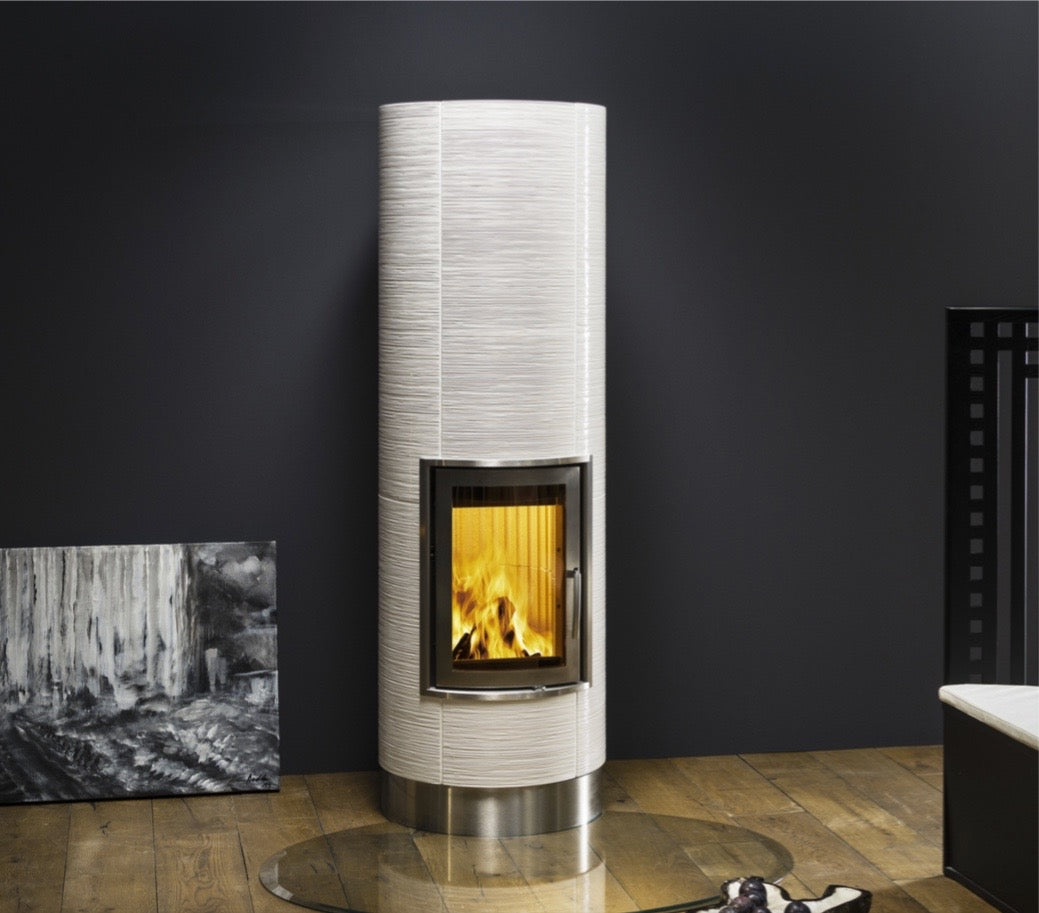

Small storage tiled stove with warm air option and stylish round design

A full-fledged storage tiled stove in the smallest of spaces … a small tiled stove!

Enjoy the full benefits of a tiled stove while using only the space of a wood stove.

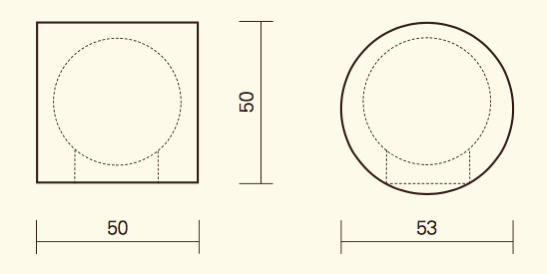

With a footprint of only about 50 cm, it's a true compact space wonder:

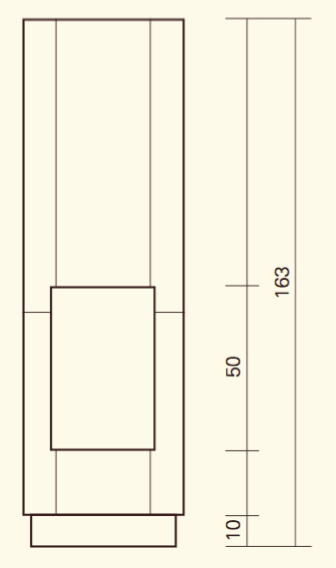

• Dimensions approx.: 163 x Ø 53 cm

Our small tiled stove enhances your sense of well-being, as radiant heat is perceived by the body as more soothing than the convection heat from wood stoves or traditional radiators. The heat-retaining fireclay and stove tiles absorb the heat and release it gradually. Long after the fire has gone out, you can still enjoy the natural radiant warmth.

Allergy and asthma sufferers also appreciate this clean radiant heat.

Dust circulation and overheating of the room are no longer an issue. You stay healthy and can enjoy the soothing warmth in peace. This is because the stove tiles gently release radiant heat to walls and objects rather than heating the air itself. This radiant heat effect ensures an even room temperature without overheating the space. The air stays clean, no dust is stirred up, and a pleasant, comfortable indoor climate is maintained.

• Exterior: high-quality heat-retaining ceramic
• Interior: Ofen Innovativ KSO (http://ofen-innovativ.de)
• Tested according to DIN EN 13229, DIBt RLU tested, Z-43.12-286
• Efficiency: 81.6%

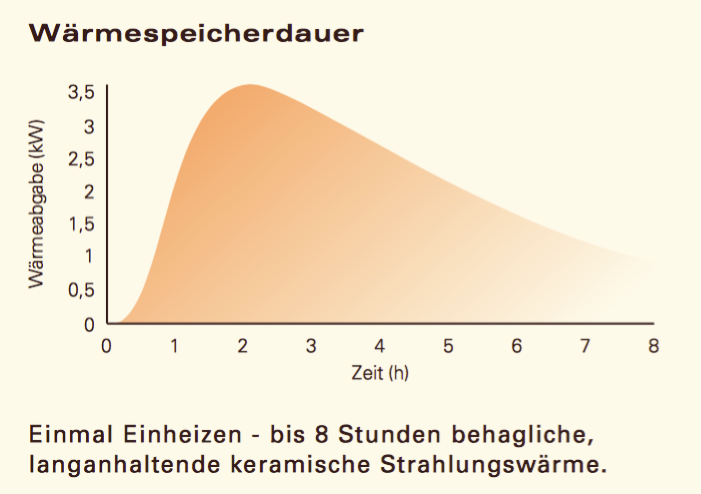

• Storage duration: up to 8 hours
• Wood quantity: min. 2 kg - max. 5 kg
• Log length: max. 38 cm
• Weight: 345 kg

A plus + for your health thanks to a small tiled stove with long-wave radiant heat

• The gentle infrared-C radiation has a calming effect on the nervous system.
• The radiant heat promotes blood circulation and relieves muscle tension.
• You can relax as your body and mind switch to a "resting state."
• This results in a strengthened immune system.

Innovative warm-air concept provides greater flexibility.

You also have the option of equipping the small tiled stove with an additional warm-air system. This allows you to feel the warmth right from the start of lighting the fire. A warm-air grille on top of the stove allows you to regulate the release of warm air. At first, leave the grille open until a certain base temperature is reached in the room. Then close the grille, and all the heat will be stored inside by the built-in fireclay bricks and slowly released again through the high-quality ceramic surface. If the warm-air option is not selected, the stove functions purely as a storage stove with a storage mass of 345 kg.

The output of the small tiled stove depends on the operating mode:

• Nominal heat output in full storage mode: avg. 2.2 kW/h over approx. 8 hours
• Nominal heat output in full warm-air mode: avg. 4.2 kW/h over approx. 3.5 hours

The small tiled stove can be connected at the rear or top. Here are the required specifications:

• Flue pipe rear or top: 13 cm
• Connection height for center flue pipe: 149.5 cm

It is also possible to integrate an external air connection. For this request, please send a separate inquiry.

• Combustion air connection: 10 cm

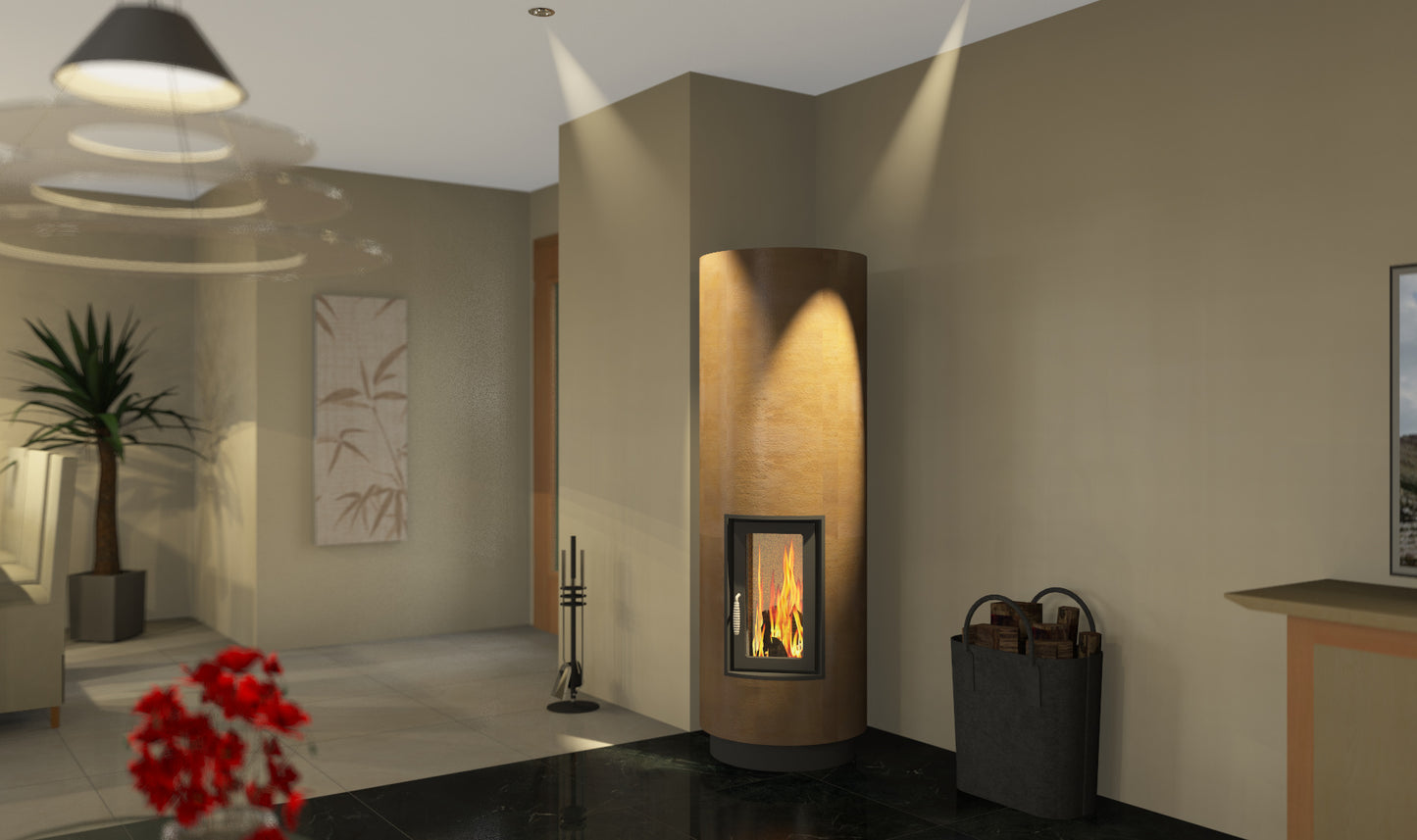

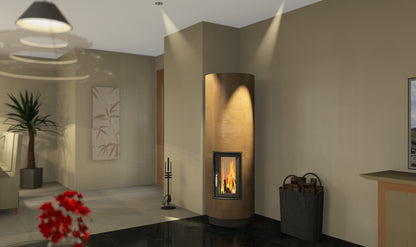

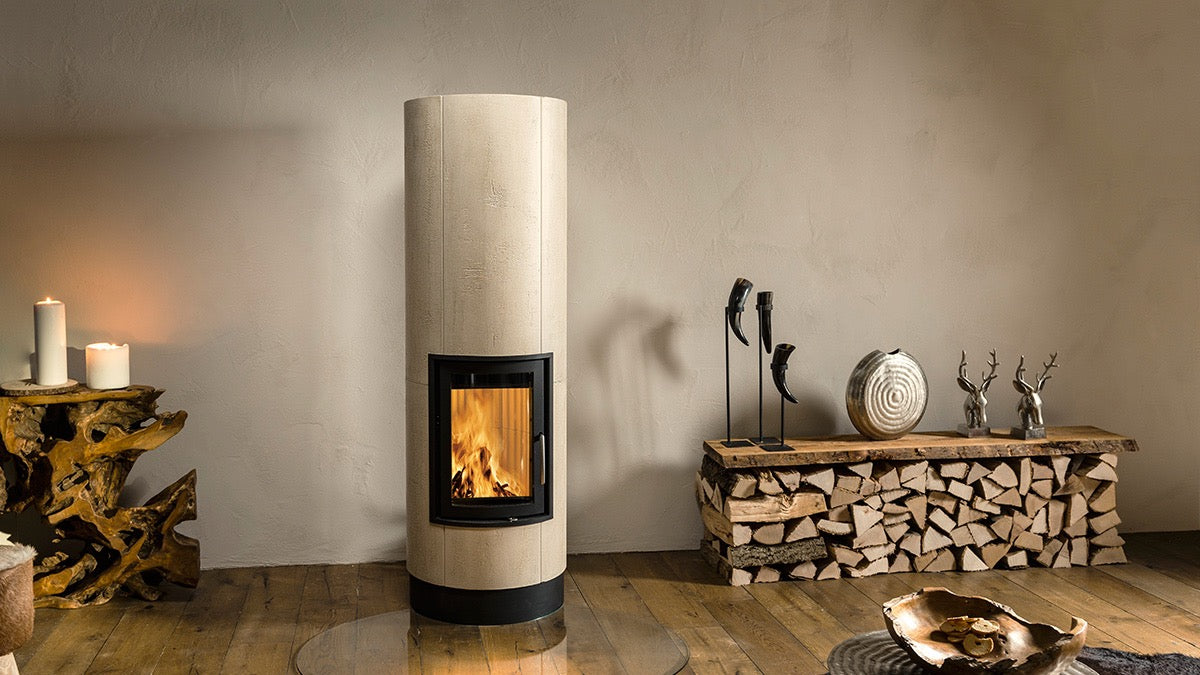

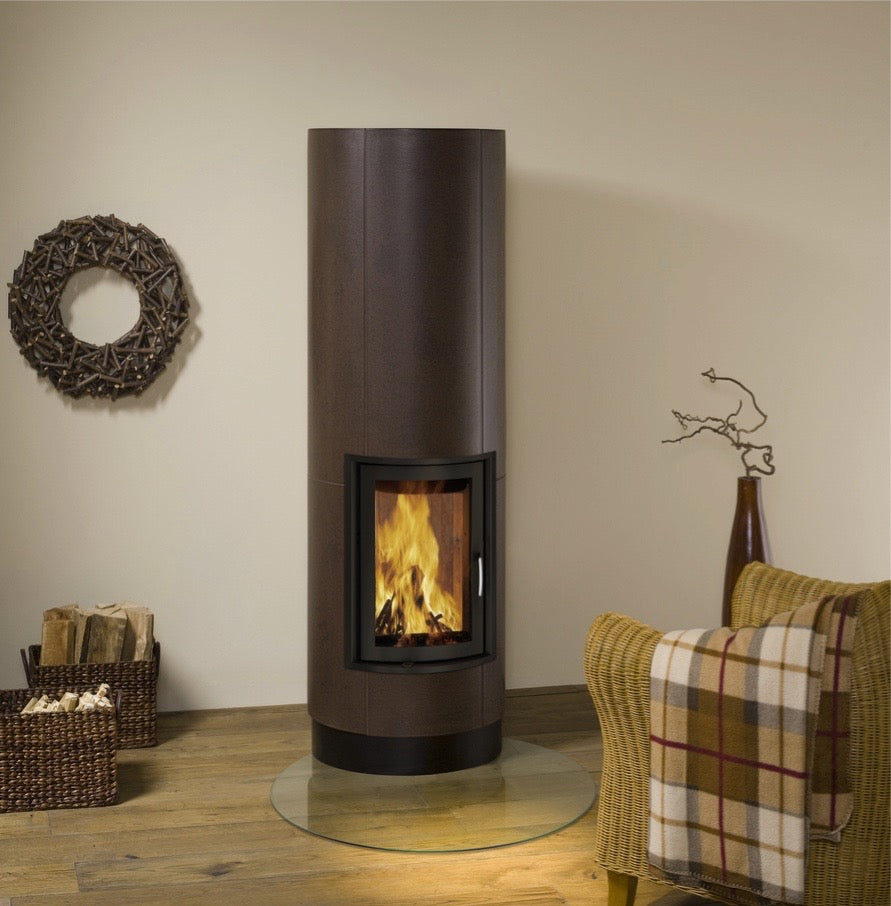

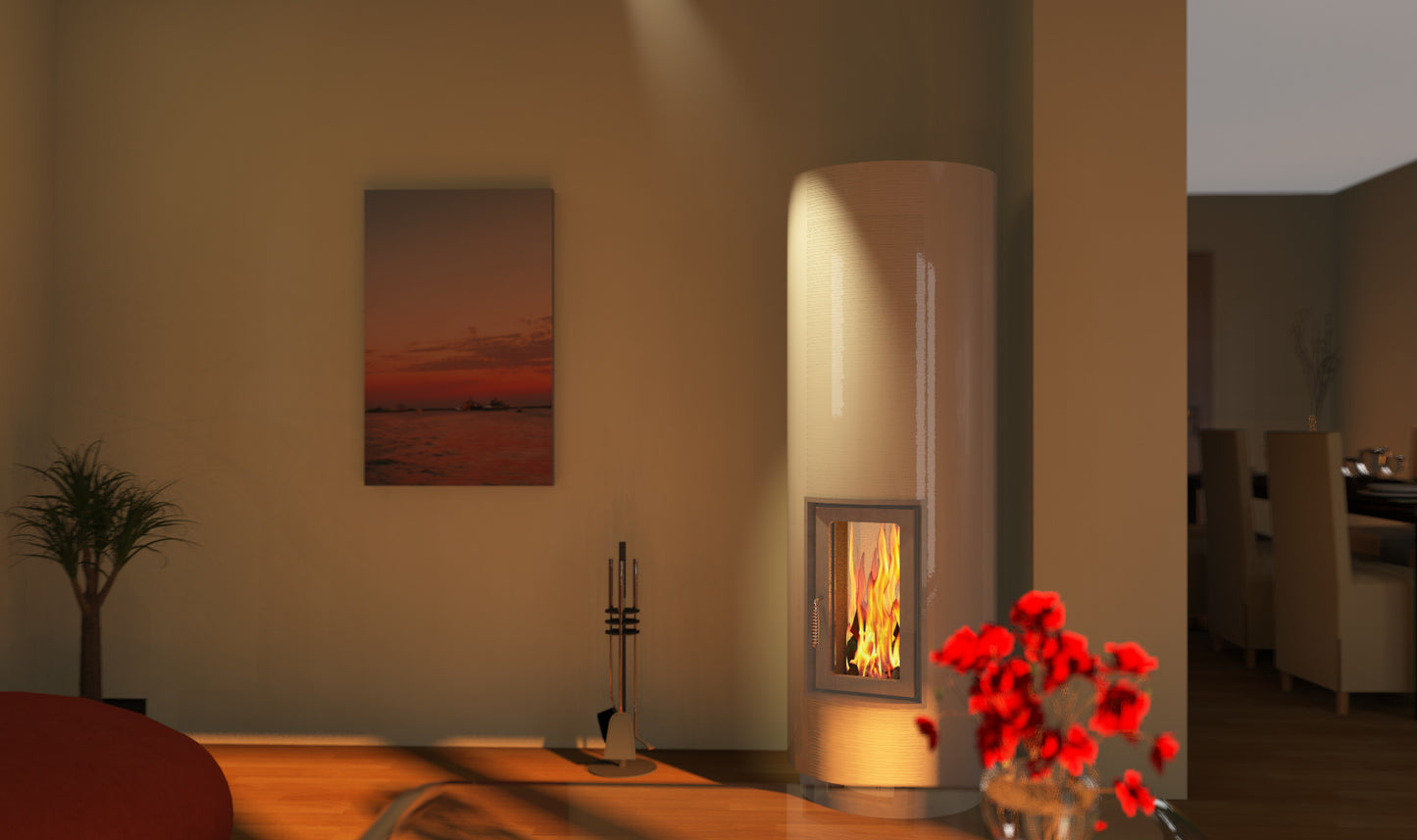

Whether red, white, beige, or anthracite … the round small tiled stove … a highlight in your living room.

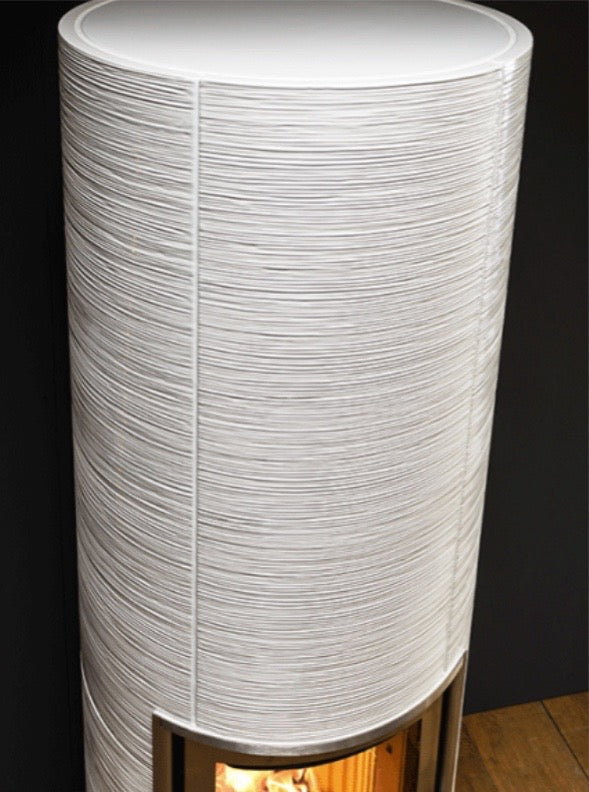

Your design preferences can be accommodated in many ways. Over 50 glazes are available to choose from. For some glazes, an additional tile surface can also be selected — 6 options are available: smooth, grooved, Napa, Cottone, weathered, and Terra. Please refer to the glaze overview for the full range of glazes. Feel free to get in touch with us about this. Send us an email.

Some high-quality glazes can already be found at the top right in the glaze selection box. If you are looking for a different glaze color or a special combination of glaze color and surface, please select "Define Individually." Each individual tile can be selected and ordered separately. On request, we will gladly prepare a 3D design for you. This way, you can preview your desired selection in advance and make a binding decision.

Just 1 day … and it's ready!

The small tiled stove has been designed so that it can be assembled within a short time. Two skilled craftsmen need approximately one day, and the centerpiece is complete. After a short drying period, it can be lit.

Professional installation of your storage stove

Of course, you can assemble and install the small tiled stove yourself.

Naturally, as a certified master craftsman business specializing in tiled stove and warm-air heating construction, we can also handle the installation of this beautiful small tiled stove for you. Please feel free to send us an email or give us a call.

Our short video "Full-Storage Tiled Stove Assembled and Lit" shows the assembly of the small tiled stove in time-lapse.
