Ventilation grille for rear ventilation of combustible walls

99,95 €

Sale Sold out

Taxes included. Shipping calculated at checkout.

Color white black

length 33cm 44cm 55cm

These air grilles are used for active rear ventilation of fireplaces installed against combustible walls, floors, or ceilings.

The air grilles serve to prevent heat build-up. According to applicable regulations, combustible walls must be specially protected against heat when installing a stove system. Any resulting heat build-up must be appropriately dissipated between the stove system and the combustible/insulated wall. The ideal solution is to install such ventilation grilles in the gap between the tiled stove/fireplace and the combustible wall. This allows an air exchange to take place within the gap, cooling the adjacent materials. This applies whether the grille is installed behind, below, or above the fireplace.

Stay safe! An invisible fire behind the cladding is extremely dangerous and is usually noticed far too late. Install in accordance with the relevant regulations and protect your family's health.

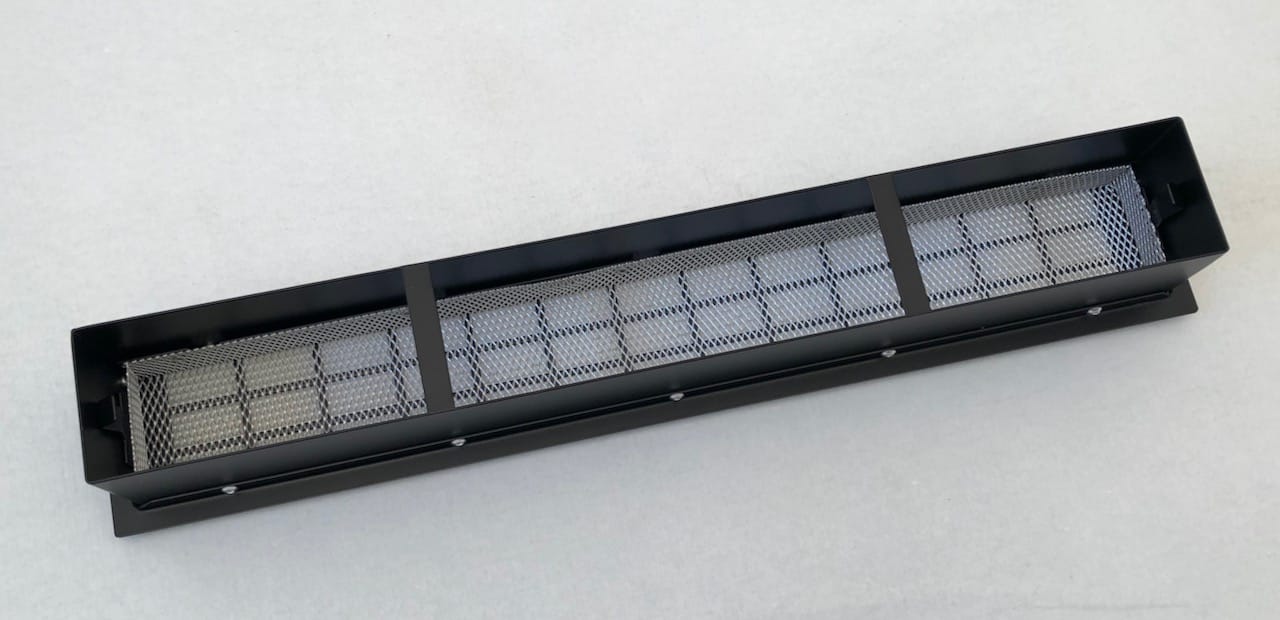

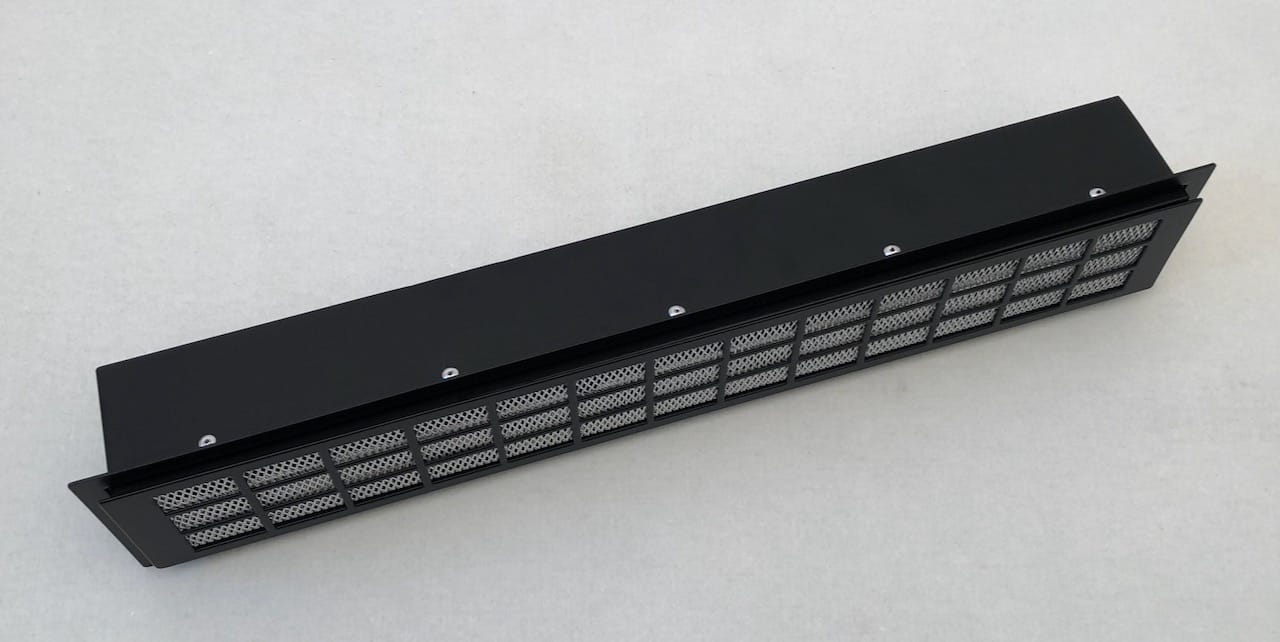

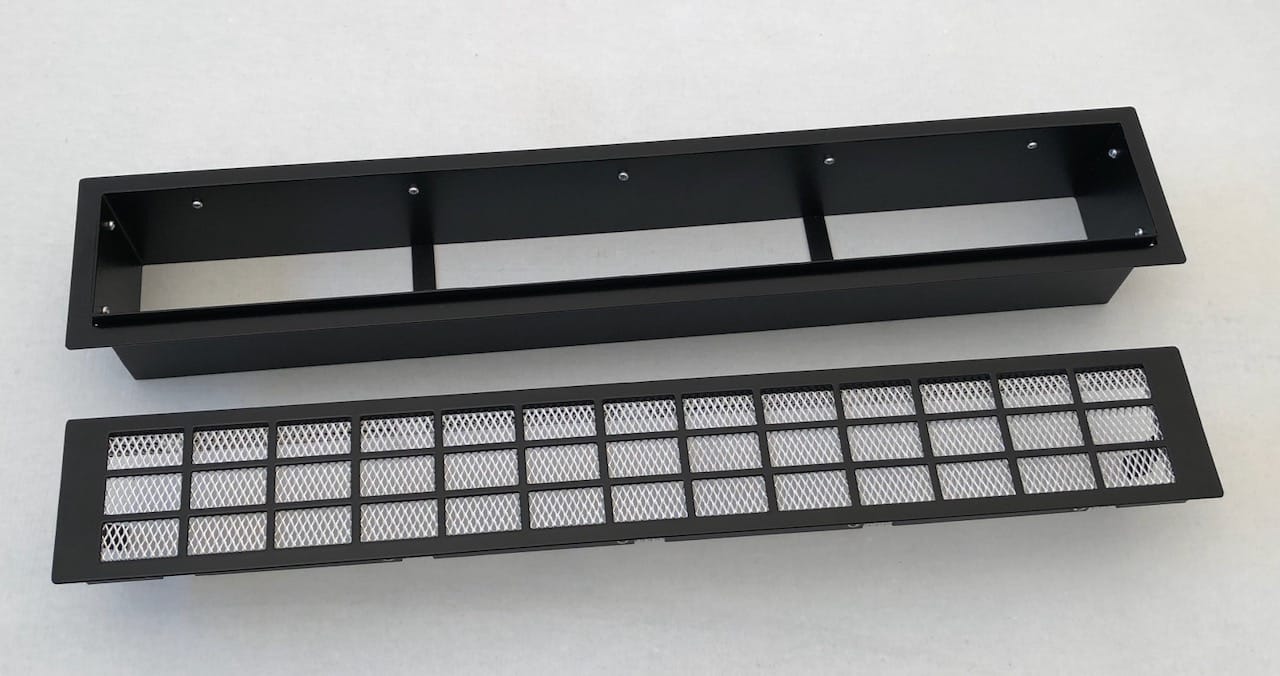

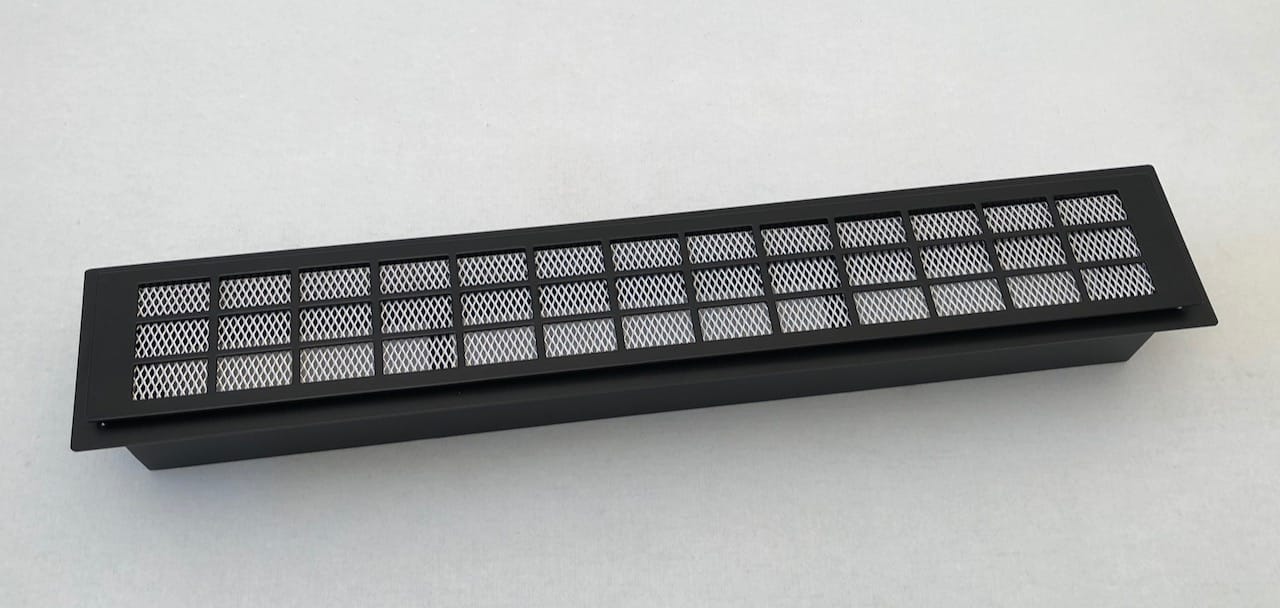

The ventilation grille consists of a mounting frame and a removable grille element with rectangular openings.

The air grille is available in 2 colors (black, white) and in 3 lengths (33cm, 44cm, 55cm).

The surface has a heat-resistant baked enamel finish.

For further detailed information, please refer to the TROL technical guidelines or consult your local chimney sweep.

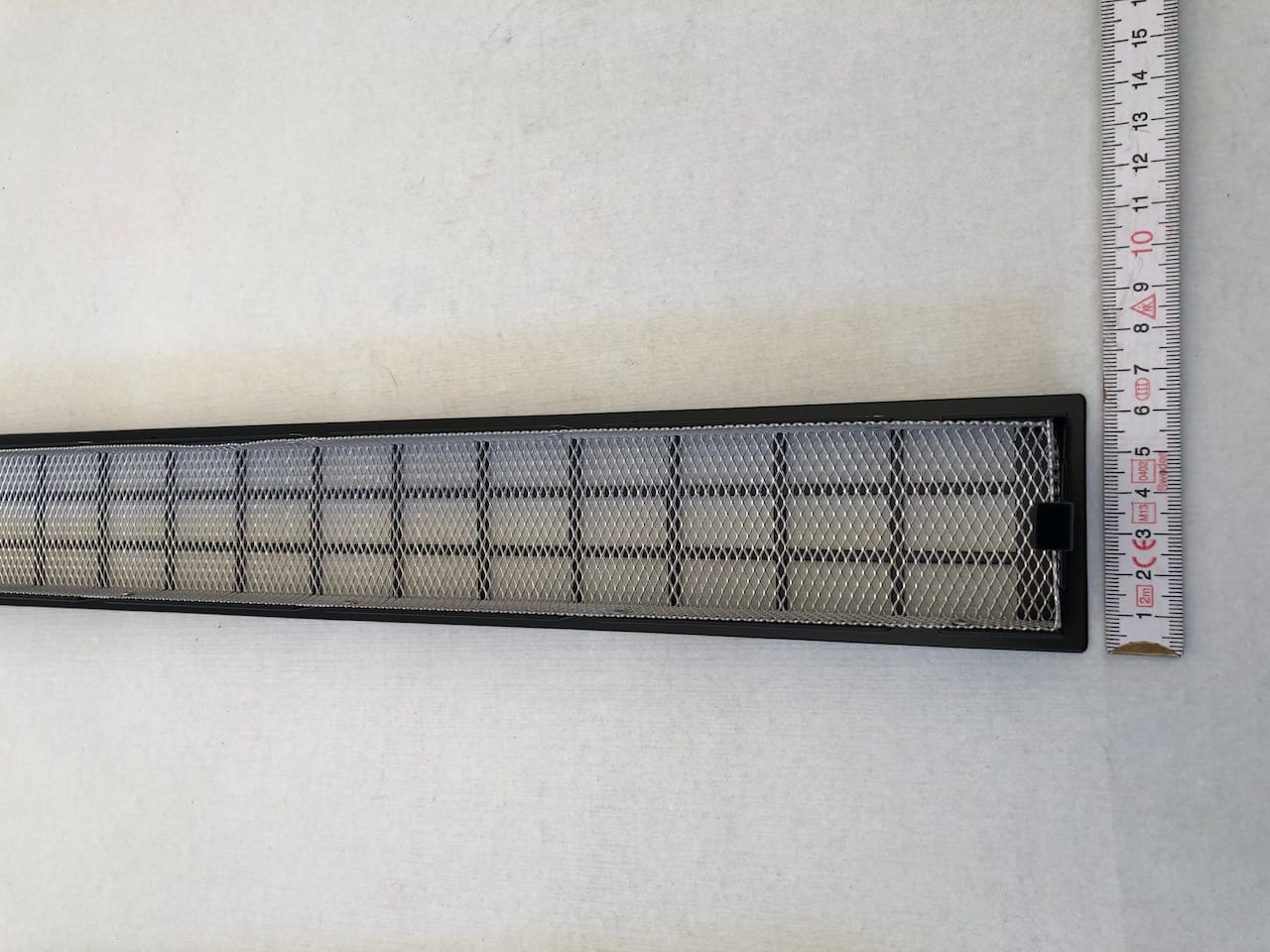

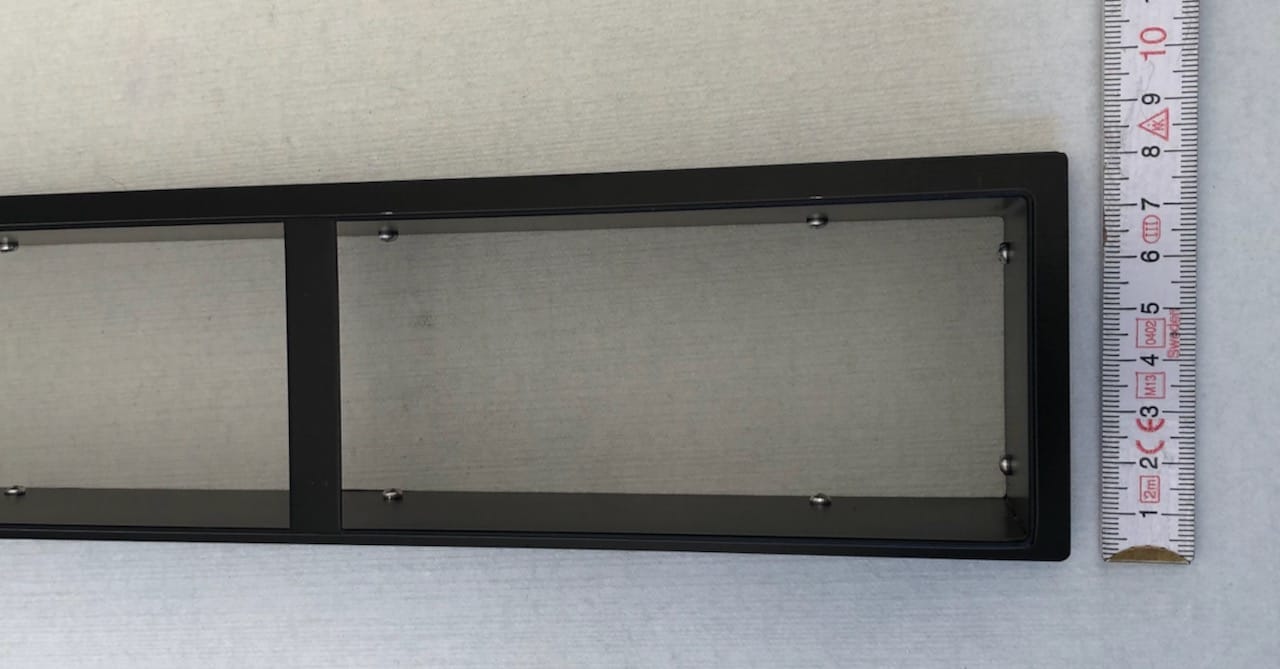

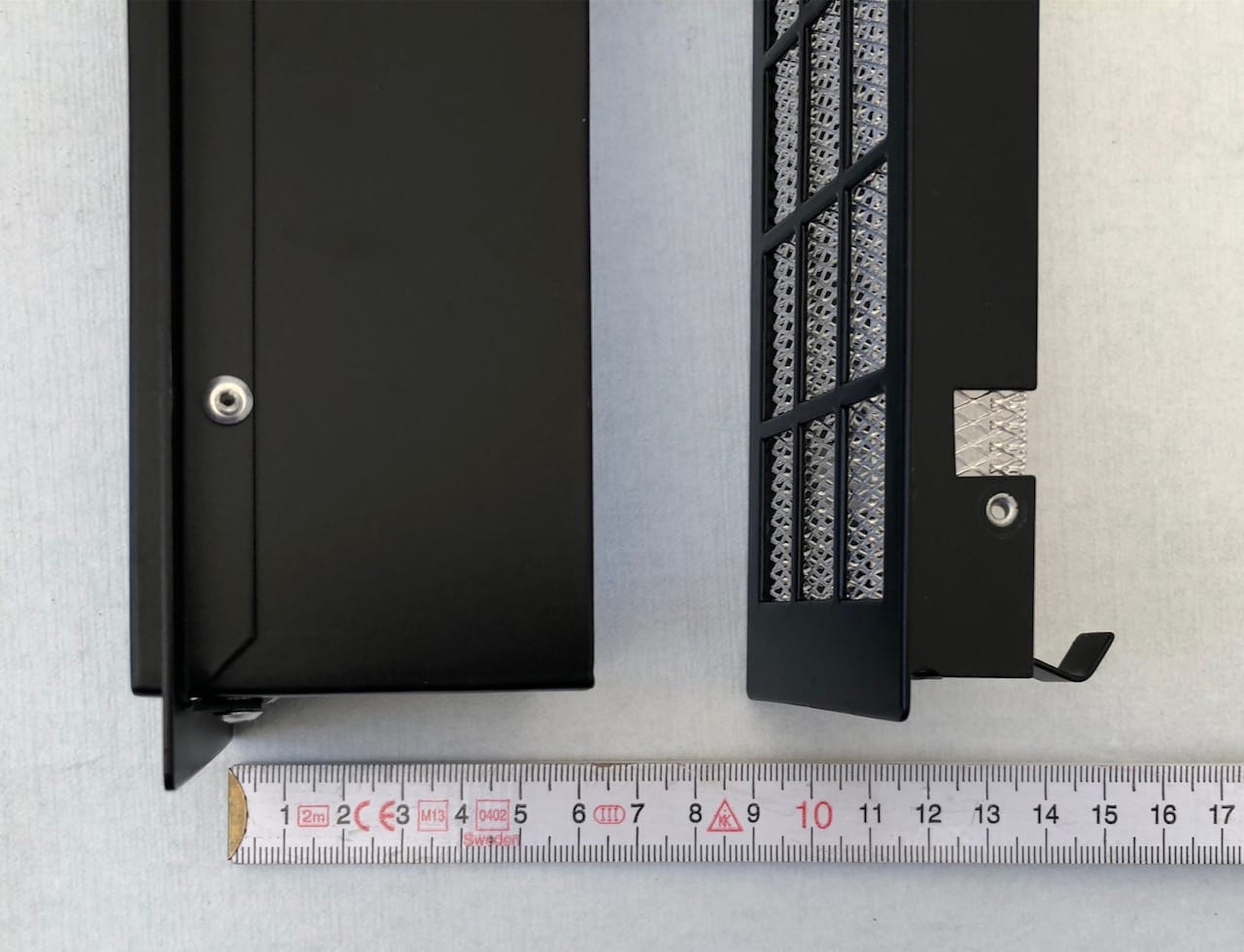

Dimensions of the air grille:
